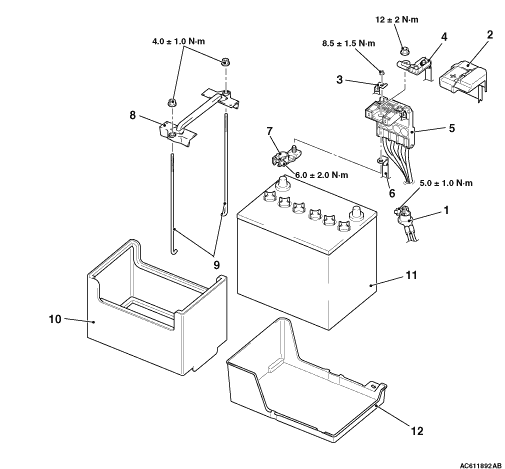

Removal steps
|
|
|
1.
|
Connection of the battery harness [negative battery terminal]
|
|
|
·
|
Air cleaner intake duct (Refer to GROUP 15 - <BWC>).
|
|
|
2.
|
Fusible link box cover
|
|
|
3.
|
Connection of the battery harness [positive battery terminal]
|
|
|
4.
|
Connection of fusible link box 1P assembly
|
|
|
5.
|
Connection of fusible link box 6P assembly
|
|
|
6.
|
Connection of the battery harness [positive battery terminal]
|
|
|
7.
|
Battery terminal assembly
|
|
|
8.
|
Battery holder
|
|
|
9.
|
Battery bolt
|
|
|
10.
|
Battery cover
|
|
|
11.
|
Battery
|
|
|
12.
|
Battery tray
|
