REMOVAL AND INSTALLATION


caution
  • Before removing the steering wheel and driver’s air bag module assembly, refer to GROUP 52B - Service Precautions and Driver’s Air Bag Module and Clock Spring <Except T/C> or <RALLIART> <Vehicles with WCM>.
  • After the installation, perform a calibration for the ASC-ECU to learn the steering wheel sensor neutral point (Refer to GROUP 35C, On-vehicle Service - Steering Wheel Sensor Calibration ). <Vehicles with WCM and ASC>
Pre-removal Operation
  • Check of steering wheel straight-ahead position <Vehicles with WCM>

  • Removal of steering wheel assembly (Refer to GROUP 37A - Steering Wheel <Power Steering> or GROUP 37B - Steering Wheel <Electrical Power Steering>). <Vehicles with WCM>

 Post-installation Operation
  • Installation of steering wheel assembly (Refer to GROUP 37A - Steering Wheel <Power Steering> or GROUP 37B - Steering Wheel <Electrical Power Steering>). <Vehicles with WCM>
  • Check of steering wheel straight-ahead position <Vehicles with WCM>

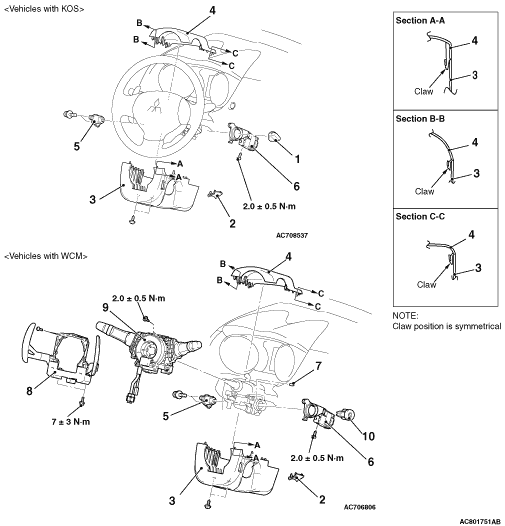

Removal Steps


1.
 IG knob cap <Vehicles with KOS>


2.
 Ignition key cover


3.
 Steering column cover lower


4.
 Steering column cover upper


5.
 Ignition switch

>>A<<
 6.
 WCM <Vehicles with WCM>/receiver antenna module <Vehicles with KOS>


7.
 Key illumination bulb <Vehicles with WCM and paddle shift>


8.
 Paddle shift assembly <Vehicles with WCM and paddle shift>


9.
 Column switch assembly <Vehicles with WCM>
< <A> >
10.
 Steering lock cylinder <Vehicles with WCM>

REMOVAL SERVICE POINT

<<A>> STEERING LOCK CYLINDER REMOVAL <VEHICLES WITH WCM>
1.Insert the key into the steering lock cylinder, and turn the ignition key to the ACC position.

2.With using a cross-headed screw driver (small) or similar items to press in the lock pin, remove the ignition key, and then remove the steering lock cylinder.

INSTALLATION SERVICE POINT

>>A<< WIRELESS CONTROL MODULE <VEHICLES WITH WCM>/RECEIVER ANTENNA MODULE <VEHICLES WITH KOS> INSTALLATION
Check that the top claw of receiver antenna module is fixed securely to the boss of steering lock and the antenna is not floated on the key cylinder.
