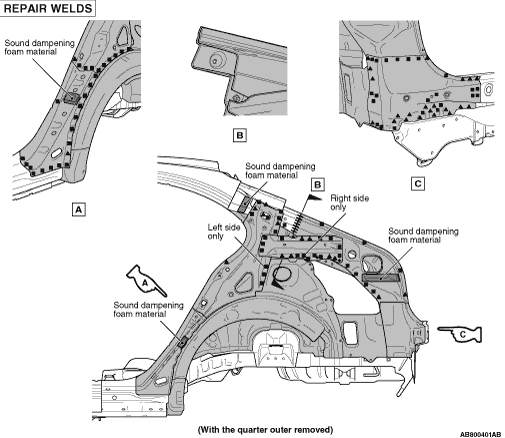

1.When installing the new quarter panel upper inner parts, machine the body loose panel cushion (MR535301 or MR435765) for replacement as shown and apply it to the body side because the sound dampening foam material cannot be filled into the gate pillar.
|
|
2.When installing the new rear pillar reinforcement lower part, machine the body loose panel cushion (MR535301 or MR435765) for replacement as shown and apply it to the body side because the sound dampening foam material cannot be filled into the rear pillar reinforcement lower.
|
|
3.After installing the new gate pillar reinforcement, in order to fill the sound dampening foam material into the gate pillar in the next process, machine the body loose panel cushion (MR535301 or MR435765) as shown in the figure, and fill the gap of the rear combination lamp support bulkhead.
|
|
4.Assemble the quarter panel outer, bolt and tape the hole and flange with aluminium tape, then fill the hole with sound dampening foam material as shown in the figure of the instructions.
|
|
5.Wait 2 hours after filling the sound dampening foam material to remove the bolt and aluminium tape, then melt the sound dampening foam material with a soldering gun so a clip, etc. can thoroughly be inserted in the hole filled with sound dampening foam material.
|

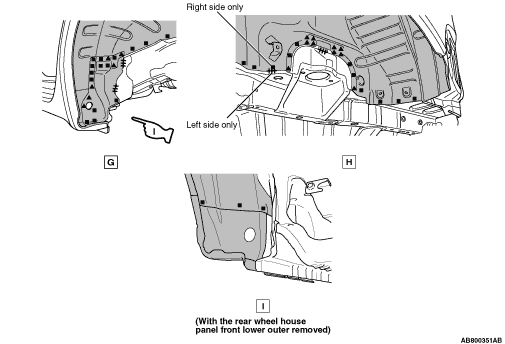

for the welding points with the quarter outer.
