REMOVAL AND INSTALLATION <BSY>


Pre-removal operation
  • Engine Room Under Cover Front A, C Removal (Refer to GROUP 51 - Under Cover ).
  • Engine Coolant Draining (Refer to GROUP 14 - On-vehicle Service, Engine Coolant Replacement <BSY> ).
  • Battery and Battery Tray Removal (Refer to GROUP 54A - Battery ).
  • Air Cleaner Intake Duct and Air Cleaner Assembly Removal <BSY> (Refer to ).
  • Front Bumper Assembly Removal (Refer to GROUP 51 - Front Bumper Assembly ).

 Post-installation operation
  • Front Bumper Assembly Installation (Refer to GROUP 51 - Front Bumper Assembly ).
  • Air Cleaner Intake Duct and Air Cleaner Assembly Installation <BSY> (Refer to ).
  • Battery and Battery Tray Installation (Refer to GROUP 54A - Battery ).
  • Engine Coolant Refilling (Refer to GROUP 14 - On-vehicle Service, Engine Coolant Replacement <BSY> ).
  • Engine Room Under Cover Front A, C Installation (Refer to GROUP 51 - Under Cover ).

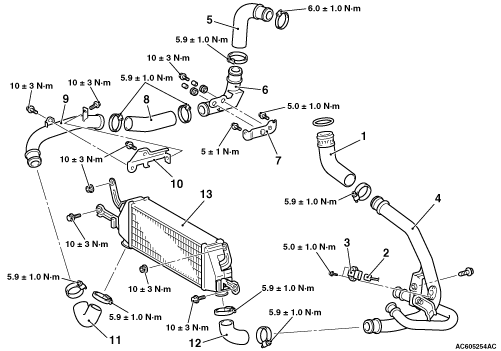

Removal steps


1.
 Air hose D


2.
 Manifold absolute pressure sensor connector connection


3.
 Manifold absolute pressure sensor


·
 Radiator lower hose (Refer to GROUP 14 - Radiator <BSY> ).


4.
 Air pipe C


5.
 Air hose E


6.
 Air pipe A


7.
 Air pipe bracket


8.
 Air hose A


9.
 Air pipe B assembly


10.
 Air pipe B bracket


11.
 Air hose B


12.
 Air hose C


13.
 Intercooler assembly
