TRANSMISSION ASSEMBLY REMOVAL AND INSTALLATION


caution
  • The fasteners marked with *1 should be temporarily tightened first and then fully tightened with the engine weight applied on the vehicle body.
  • The bolts marked with *2 are coated with the friction coefficient stabilizer. After removing these bolts, make sure that they are free of damage, remove any dust and dirt on the bearing surfaces and the threads, and then securely tighten to the specified torque.
Pre-removal operation
  • Engine room under cover front A and side cover removal (Refer to GROUP 51 - Under Cover .)
  • A/T fluid draining (Refer to .)
  • Air cleaner bracket removal (Refer to GROUP 15 - Air Cleaner .)
  • Battery and Battery Tray Removal (Refer to GROUP 54A - Battery .)
  • Engine-ECU removal (Refer to GROUP 13C - Engine-ECU .)
  • Wiper arm · blade assembly and front deck garnish removal (Refer to GROUP 51 - Windshield Wiper .)
  • Strut Tower Bar Removal (Refer to GROUP 42A - Strut Tower Bar .)
  • Drive shaft removal (Refer to GROUP 26 .)

 Post-installation operation
  • Drive shaft installation (Refer to GROUP 26 .)
  • Strut Tower Bar Installation (Refer to GROUP 42A - Strut Tower Bar .)
  • Wiper arm and blade assembly and front deck garnish installation (Refer to GROUP 51 - Windshield Wiper .)
  • Battery and battery tray installation (Refer to GROUP 54A - Battery .)
  • Engine-ECU installation (Refer to GROUP 13C- Engine-ECU .)
  • Air cleaner assembly installation (Refer to GROUP 15 - Air Cleaner .)
  • Engine room under cover A and side cover installation (Refer to GROUP 51 - Under cover .)
  • A/T fluid refilling (Refer to .)

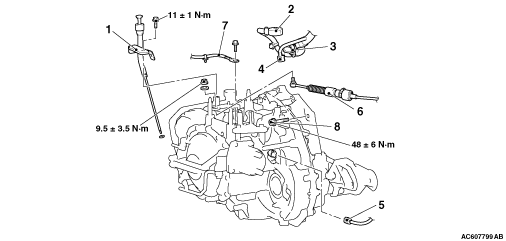

Removal steps


1.
 A/T fluid filler tube assembly


2.
 A/T control solenoid valve assembly connector


3.
 Input shaft speed sensor connector


4.
 Inhibitor switch connector


5.
 Output shaft speed sensor connector

>>C<<
 6.
 Transmission control cable connection


7.
 Battery earth


·
 Harness clamp
<<A>>
8.
 Transmission assembly upper part coupling bolt

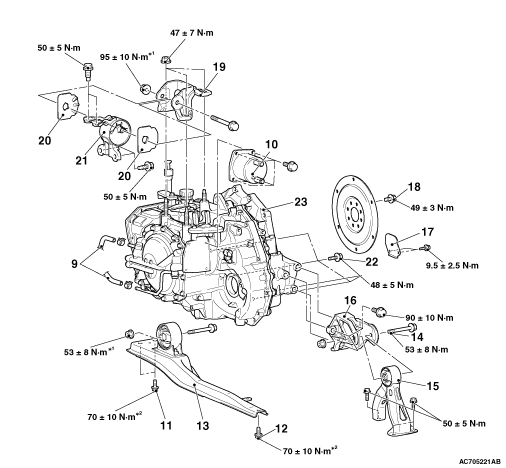

Removal steps


·
 Starter assembly (Refer to GROUP16, starter assembly )


·
 Transfer assembly (Refer to )


9.
 A/T fluid cooler hose assembly connection


·
 Water return hose A, Water return tube, Water return hose B (Refer to <Except for RUSSIA> , <Vehicles for RUSSIA>)


10.
 ATF warmer


11
 Centermember and body connection


12
 Centermember and crossmember connection


13.
 Front roll stopper and centermember assembly


14.
 Flange nut


15.
 Rear roll stopper


16.
 Transmission case rear roll stopper bracket


17.
 Oil pan cover
<<B>>
18.
 Torque converter and drive plate coupling bolt


·
 Air intake plenum (Refer to GROUP15, Air intake plenum )


·
 Raise the engine and transmission assembly to the position where the engine weight is not applied to the transmission mounting insulator.


19.
 Transmission mounting bracket

>>B<<
 20.
 Transmission mounting insulator stopper


21.
 Transmission mounting insulator
<<C>>
·
 Engine assembly holding


22.
 Transmission assembly lower part coupling bolt

>>A<<
 23.
 Transmission assembly

REMOVAL SERVICE POINTS

<<A>> TRANSMISSION ASSEMBLY UPPER PART COUPLING BOLT REMOVAL
Only loosen the bolts from the engine and transmission assembly (do not remove).

<<B>> TORQUE CONVERTER AND DRIVE PLATE COUPLING BOLT REMOVAL
1.Remove the coupling bolts while turning the crankshaft.
2.Fully push the torque converter into the transmission side so that it does not remain on the engine side.

<<C>> ENGINE ASSEMBLY HOLDING


1.
caution The engine hanger plate (special tool: MB992208)should be secured by tightening bolts with the engine hanger plate to the specified torque (If the other bolts are used, the engine assembly may fall down when it is raised.)

Tightening torque: 22 ± 4 N·m
Remove the air intake plenum stay, rear on the right bank and the engine hanger on the left bank, and then install the engine hanger plate (Special tool: MB992208) to the place.


2.When engine hanger (Special tool: MB991928) is used
(1) Assemble the engine hanger (Special tool: MB991928). (Set the components below to the base hanger.)

  • Slide bracket (HI)
  • Foot x 2 (standard) (MB991932)
  • Foot x 2 (short) (MB991933)
  • Joint x 2 (90) (MB991930)
(2) Set the feet of the special tool as shown in the figure.
note Adjust the engine hanger balance by sliding the slide bracket (HI).
(3) Set the chains of the engine hanger (Special tool: MB991527) and the engine hanger balancer (Special tool: MB991454) to support the engine and transmission assembly. Remove the garage jack and then remove the transmission assembly upper part coupling bolts that have been loosened previously.



3. When using engine mechanical hanger (Special tool: MZ203830 or MZ203831)
(1) Set the foot of the engine mechanical hanger (Special tool: MZ203830 or MZ203831) as shown in the figure.
note Slide the front foot of the engine mechanical hanger (Special tool: MZ203830 or MZ203831) to balance the engine hanger.
caution Place rag between the engine mechanical hanger (Special tool: MZ203830 or MZ203831) and the windshield to prevent the special tool from interfering with the windshield.
(2) Set the chains of the engine hanger (Special tool: MB991527) and the engine hanger balancer (Special tool: MB991454) to support the engine and transmission assembly. Remove the garage jack and then remove the transmission assembly upper part coupling bolts that have been loosened previously.

INSTALLATION SERVICE POINTS

>>A<< TRANSMISSION ASSEMBLY INSTALLATION

Fully push the torque converter into the transmission side, and then assemble the transmission assembly to the engine.

>>B<< TRANSMISSION MOUNTING INSULATOR STOPPER INSTALLATION

Install the transmission mounting insulator stopper as shown in the figure.

>>C<< TRANSMISSION CONTROL CABLE (TRANSMISSION SIDE) INSTALLATION


1.Move the selector lever and manual control lever to the "N" position.
2.Use the adjusting nut to tighten the transmission control cable to the specified torque.
Tightening torque: 9.5 ± 3.5 N·m
