Code No.B240A FR antenna(outdoor) open


caution When replacing the ECU, always check that the communication circuit is normal.












DIAGNOSTIC FUNCTION



JUDGEMENT CRITERIA



PROBABLE CAUSES



  • Malfunction of the outside transmitter antenna assembly (driver’s side)
  • Malfunction of the KOS-ECU
  • Damaged wiring harness and connectors

DIAGNOSTIC PROCEDURE

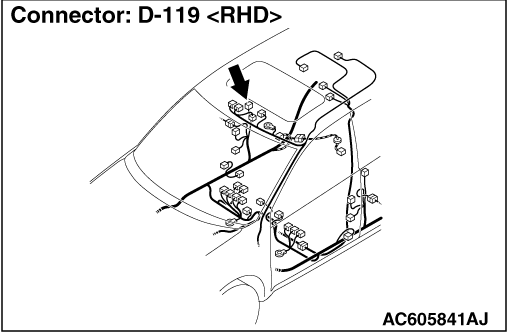

STEP 1. Connector check: D-119 Outside transmitter antenna assembly (driver’s side) connector, C-104 KOS-ECU connector


Q. Is the check result normal?

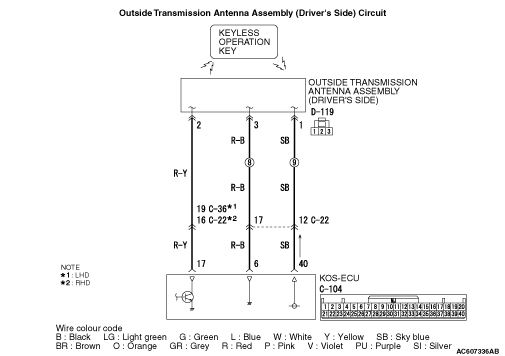

STEP 2. Check the wiring harness between the D-119 outside transmitter antenna assembly (driver’s side) connector terminal Nos. 1, 2, 3 and the C-104 KOS-ECU connector terminal Nos. 40, 17, 6.



note Prior to the wiring harness inspection, check intermediate connectors C-22 and C-36 <LH drive vehicles>, and repair if necessary.

Q. Is the check result normal?





STEP 3. Keyless operation system communication test



Antennas to be checked
    Driver side antenna (exterior)
OK: Normal is displayed.

Q. Is the check result normal?





STEP 4. Check whether the diagnosis code is reset.


(1)Erase the diagnosis code.
(2)Turn the ignition switch from the LOCK (OFF) position to the ON position.
(3)Check if the diagnosis code is set.

Q. Is the diagnosis code set?
