Code No.B16A3 Turn-signal Lamp (LH) Short Circuit












DIAGNOSTIC FUNCTION



JUDGMENT CRITERIA



PROBABLE CAUSES



  • Damaged harness wires and connectors
  • Malfunction of the ETACS-ECU

DIAGNOSIS PROCEDURE

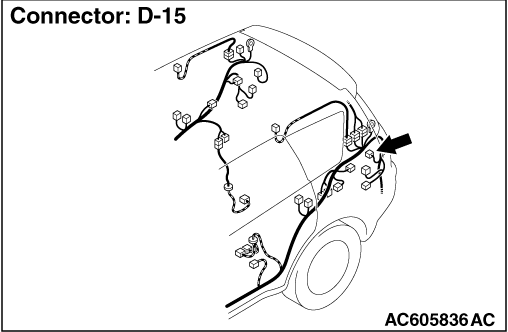

STEP 1. Connector check: A-37 headlamp assembly (LH) connector, A-11 side turn-signal lamp (LH) connector and D-15 rear combination lamp (LH) connector


Q. Is the check result normal?





STEP 2. Connector check: C-304 and C-311 ETACS-ECU connectors


Q. Is the check result normal?





STEP 3. Wiring harnesses check between A-37 headlamp assembly (LH) connector terminal No. 5, A-11 side turn-signal lamp (LH) connector terminal No. 2, D-15 rear combination lamp (LH) connector terminal No. 3 and C-304 ETACS-ECU connector terminal No. 9 or C-311 ETACS-ECU connector terminal No. 18



  • Check the output lines for short circuit.

Q. Is the check result normal?





STEP 4. Check whether the diagnosis code is reset.


(1)Erase the diagnosis code.
(2)Turn the ignition switch from "LOCK" (OFF) position to "ON" position.
(3)Check if diagnosis code is set.

Q. Is the diagnosis code set?
