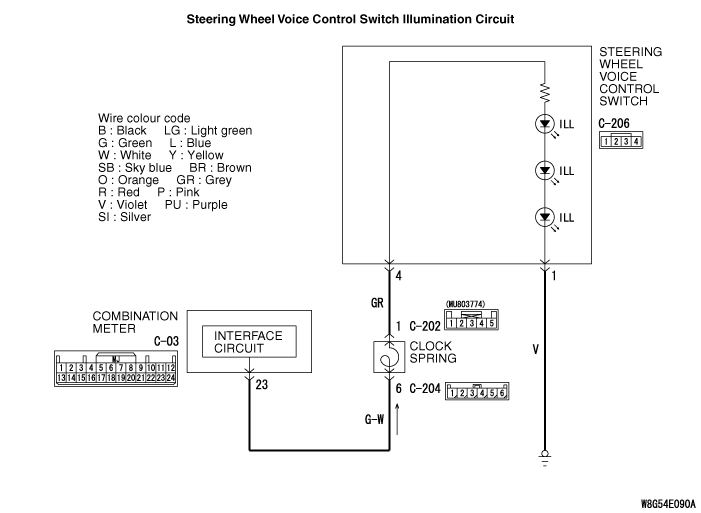

Inspection Procedure 6: Steering wheel voice-control switch illuimination does not come on.



caution Before replacing the ECU, ensure that the power supply circuit, the earth circuit and the communication circuit are normal.












TECHNICAL DESCRIPTION (COMMENT)




PROBABLE CAUSES



  • Malfunction of steering wheel voice control switch
  • Malfunctions of combination meter
  • Malfunction of the clock spring
  • Damaged harness wires and connectors

DIAGNOSIS PROCEDURE


STEP 1. Check the combination meter.


Check whether the combination meter works normally.

Q. Is the check result normal?

Go to Step 2.
Diagnose the combination meter (Refer to Combination Meter - Troubleshooting ).

STEP 2. Connector check: C-206 steering wheel voice-control switch connector


Q. Is the check result normal?

Go to Step 3.
Repair the defective connector.

STEP 3. Check the wiring harness between C-206 steering wheel voice control switch connector terminal No.1 and body earth.



  • Check the earth wire.

Q. Is the check result normal?

Go to Step 4.
Repair the wiring harness.

STEP 4. Connector check: C-202 and C-204 clock spring connectors


Q. Is the check result normal?

Go to Step 5.
Repair the defective connector.

STEP 5. Check the clock spring.


Check whether the clock spring is in good condition.
note Before the operation, refer to GROUP 52B - Air bag module and clock spring

  • Check that continuity exists between C-202 clock spring connector terminal No.1 and C-204 clock spring connector terminal No.6.

Q. Is the check result normal?

Go to Step 6.
Replace the clock spring.

STEP 6. Check the wiring harness between C-206 steering wheel voice control switch connector terminal No.4 and C-202 clock spring connector terminal No.1.



  • Check the power supply lines.

Q. Is the check result normal?

Go to Step 7.
Repair the wiring harness.

STEP 7. Connector check: C-03 combination meter connector


Q. Is the check result normal?

Go to Step 8.
Repair the defective connector.

STEP 8. Check the wiring harness between C-03 combination meter connector terminal No.23 and C-204 clock spring connector terminal No.6.



  • Check the power supply lines.

Q. Is the check result normal?


    Go to Step 9.
Repair the wiring harness.

STEP 9. Retest the system


Check whether the illumination of the steering wheel voice control switch comes on normally.

Q. Is the check result normal?

The trouble can be an intermittent malfunction (Refer to GROUP 00 - How to use Troubleshooting/inspection Service Points - How to Cope with Intermittent Malfunction ).
Replace the steering wheel voice control switch.
