Front door delta inner cover (Refer to GROUP 52A, Door Trim )
·
Front door trim (Refer to GROUP 52A, Door Trim )
·
Door mirror connector connection
1.

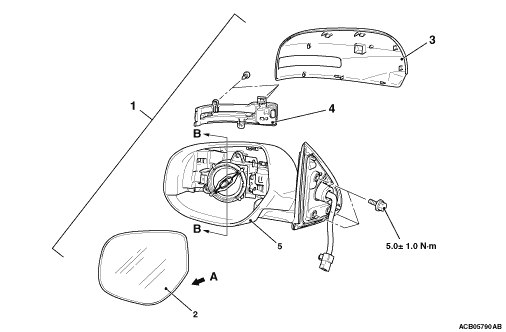

Door mirror assembly
Door mirror housing removal steps
<<A>>
2.
Mirror
3.

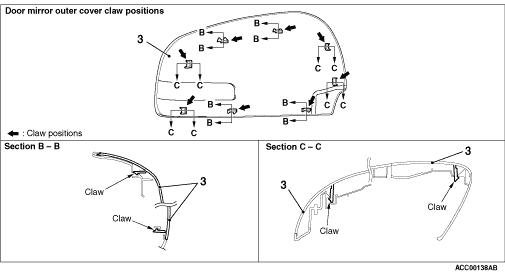

Door mirror outer cover
4.
Side turn-signal lamp assembly <With side turn-signal lamp>
5.
Door mirror housing
Remote controlled mirror switch removal steps
·
Remote controlled mirror switch (Refer to GROUP 52A, Door Trim .)
REMOVAL SERVICE POINT
<<A>>
MIRROR REMOVAL
caution
The tab of the mirror is prone to breakage when working in cold temperatures. Always use
a hair drier or the like to warm up the mirror tab and its periphery to 20°C or higher prior
to works. When the mirror is heated too quickly from its cold state, it may be broken.
1.Disengage the tab behind the mirror from the door mirror housing. 2.Disconnect the connectors of the heated mirror.
