REMOVAL AND INSTALLATION


caution Do not loosen the fixing screws for the resin cover of throttle body assembly. If the screws are loosened, the sensor incorporated in the resin cover becomes misaligned and the throttle body can not work normally.
Pre-removal Operation
  • Engine Cover Removal (Refer to GROUP 11C - Engine Assembly ).
  • Intercooler Outlet Air Hose Removal (Refer to GROUP 15 - Intercooler ).

 Post-installation Operation
  • Intercooler Outlet Air Hose Installation (Refer to GROUP 15 - Intercooler ).
  • Engine Cover Installation (Refer to GROUP 11C - Engine Assembly ).

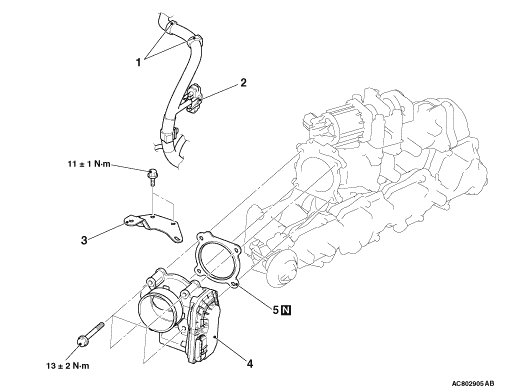

Removal steps


1.
 Harness clamp


2.
 Electronic-controlled throttle valve connector connection


3.
 Bracket


4.
 Throttle body assembly

>>A<<
 5.
 Throttle body gasket

INSTALLATION SERVICE POINT

>>A<< THROTTLE BODY GASKET INSTALLATION
caution Poor idling etc. may result if the throttle body gasket is installed incorrectly.

Install the throttle body gasket as its protrusion is in the direction shown.
