Code No.P1564: Abnormal voltage at cruise control switch.
OPERATION
- When all switches are OFF: 4.7 - 5.0 volts.
- When the "ON/OFF" switch is ON: 0 - 0.5 volt .
- When the "CANCEL" switch is ON: 1.0 - 1.8 volts.
- When the "COAST/SET" switch is ON: 2.3 - 3.0 volts.
- When the "ACC/RES" switch is ON: 3.5 - 4.2 volts.
DIAGNOSIS CODE SET CONDITIONS
- If the cruise control switch is operated, this diagnosis code will be set when the engine-ECU terminal voltage is different from the standard value.
- Or, this code is set when the "COAST/SET" switch or "ACC/RES" switch is stuck to ON.
PROBABLE CAUSES
- Damaged harness or connector.
- Malfunction of the cruise control switch.
- Malfunction of the clock spring.
- Malfunction of the engine-ECU.
|
|
STEP 1. Check the data list.
|
|
|
Using M.U.T.-III, check the data list (Refer to  - data list reference table.)
|
|
|
- Item 136: "ON/OFF" switch.
- Item 137: "CANCEL" switch.
- Item 138: "COAST/SET" switch.
- Item 139: "ACC/RES" switch.
|
|
|
Q.
Is the check result normal?
|
|
|
 Go to Step 20.
|
|
|
|
|
|
 Go to Step 2.
|
|
|
|
|
|
STEP 2. Measure the terminal voltage at cruise control switch connector D-301.
|
|
|
(1)Remove the driver’s air bag module [Refer to GROUP 52B - Driver’s, Front Passenger’s Air Bag Module(s) and Clock Spring .]
|
|
|
(2)Remove the cruise control switch from the steering wheel with the cruise control switch connector connected (Refer to .)
|
|
|
(3)Connect the negative battery cable that was disconnected when the driver’s air bag module was removed.
|
|
|
(4)Turn the ignition switch to the "ON" position.
|
|
|
(5)Do not operate the cruise control switch.
|
|
|
(6)Measure the terminal voltage between cruise control switch connector D-301 terminal No.4 and earth with cruise control switch connector D-301 connected.
OK: 4.7 - 5.0 V
|
|
|
(7)Turn the ignition switch to the "LOCK" (OFF) position.
|
|
|
(8)Install the cruise control switch to the steering wheel (Refer to .)
|
|
|
Q.
Is diagnosis code No. P1564 set?
|
|
|
Go to Step 10.
|
|
|
|
|
|
Go to Step 3.
|
|
|
|
|
|
STEP 3. Measure the terminal voltage at engine-ECU connector D-215.
|
|
|
(1)Turn the ignition switch to the "ON" position.
|
|
|
(2)Do not operate the cruise control switch.
|
|
|
(3)Do not disconnect the engine-ECU connectors.
|
|
|
(4)Measure the terminal voltage between engine-ECU connector D-215 terminal No.139 and earth with engine-ECU connector connected.
OK: 4.7 - 5.0 V
|
|
|
(5)Turn the ignition switch to the "LOCK" (OFF) position.
|
|
|
Q.
Is the check result normal?
|
|
|
Go to Step 6.
|
|
|
|
|
|
Go to Step 4.
|
|
|
|
|
|
STEP 4. Connector check: D-215 engine-ECU connector.
|
|
|
Q.
Is the check result normal?
|
|
|
Go to Step 5.
|
|
|
|
|
|
Repair or replace the damaged connector, and install the driver’s air bag module [Refer to GROUP 52B - Driver’s, Front Passenger’s Air Bag Module(s) and Clock Spring .] Then go to Step 21
.
|
|
|
|
|
|
STEP 5. Check the harness for short circuit to earth between engine-ECU connector D-215 terminal No.139 and cruise control switch connector D-301 terminal No.4.
|
|
|
(1)Disconnect engine-ECU connector D-215 and measure at the harness connector side.
|
|
|
(2)Turn the ignition switch to the "LOCK" (OFF) position.
|
|
|
(3)Measure the continuity between engine-ECU connector D-215 terminal No.139 and earth.
OK: open circuit
|
|
|
(4)Connect engine-ECU connector D-215.
|
|
|
Q.
Is the check result normal?
|
|
|
Install the driver’s air bag module [Refer to GROUP 52B - Driver’s, Front Passenger’s Air Bag Module(s) and Clock Spring .] Then go to Step 19.
|
|
|
|
|
|
Go to Step 6.
|
|
|
|
|
|

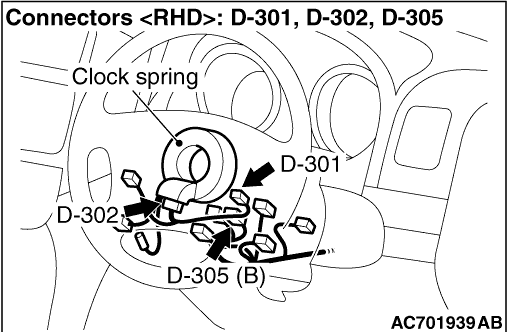

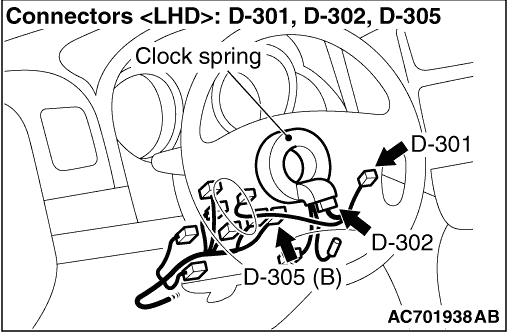

STEP 6. Connectors check: D-301 cruise control switch connector, D-229 intermediate connector, D-302 and D-305 clock spring connectors.
|
|
|
Q.
Is the check result normal?
|
|
|
Go to Step 7.
|
|
|
|
|
|
Repair or replace the damaged connector, and install the driver’s air bag module [Refer to GROUP 52B - Driver’s, Front Passenger’s Air Bag Module(s) and Clock Spring .] Then go to Step 21
.
|
|
|
|
|
|
STEP 7. Check the harness wire between engine-ECU connector D-215 terminal No.139 and cruise control switch connector D-301 terminal No.4.
|
|
|
Q.
Is the check result normal?
|
|
|
Go to Step 8.
|
|
|
|
|
|
Repair or replace the damaged harness wire, and install the driver’s air bag module [Refer to GROUP 52B - Driver’s, Front Passenger’s Air Bag Module(s) and Clock Spring .] Then go to Step 21
.
|
|
|
|
|
|
STEP 8. Check the clock spring.
|
|
|
Refer to GROUP 52B - Driver’s, Front Passenger’s Air Bag Module(s) and Clock Spring Inspection .
|
|
|
Q.
Is the check result normal?
|
|
|
Go to Step 9.
|
|
|
|
|
|
Replace the clock spring and install the driver’s air bag module [Refer to GROUP 52B - Driver’s, Front Passenger’s Air Bag Module(s) and Clock Spring .] Then go to Step 21.
|
|
|
|
|
|
STEP 9. Check the data list.
|
|
|
Using M.U.T.-III, check the data list (Refer to - data list reference table.)
|
|
|
- Item 136: "ON/OFF" switch.
- Item 137: "CANCEL" switch.
- Item 138: "COAST/SET" switch.
- Item 139: "ACC/RES" switch.
|
|
|
Q.
Is the check result normal?
|
|
|
It can be assumed that this malfunction is intermittent (Refer to GROUP 00 - How to Use Troubleshooting/Inspection Service Points, How to Cope with Intermittent Malfunctions .) Install the driver’s air bag module [Refer to GROUP 52B - Driver’s, Front Passenger’s Air Bag Module(s) and Clock Spring .]
|
|
|
|
|
|
Return to Step 2.
|
|
|
|
|
|
STEP 10. Measure the terminal voltage at cruise control switch connector D-301.
|
|
|
(1)Remove the cruise control switch from the steering wheel with the cruise control switch connector connected (Refer to .)
|
|
|
(2)Turn the ignition switch to the "ON" position.
|
|
|
(3)Press the "ON/OFF" switch with cruise control switch connector D-301 connected, and measure the terminal voltage between cruise control switch connector D-301 terminal No.3 and earth.
OK: 0.5 V or less
|
|
|
(4)Release the "ON/OFF" switch.
|
|
|
(5)Turn the ignition switch to the "LOCK" (OFF) position.
|
|
|
(6)Install the cruise control switch to the steering wheel (Refer to .)
|
|
|
Q.
Is the check result normal?
|
|
|
Go to Step 17.
|
|
|
|
|
|
Go to Step 11.
|
|
|
|
|
|
STEP 11. Measure the terminal voltage at engine-A/T-ECU connector D-215.
|
|
|
(1)Turn the ignition switch to the "ON" position.
|
|
|
(2)Do not disconnect the engine-ECU connectors.
|
|
|
(3)Press the "ON/OFF" switch, and measure the terminal voltage between engine-ECU connector D-215 terminal No.154 and earth with engine-ECU connector connected.
OK: 0.5 V or less
|
|
|
(4)Release the "ON/OFF" switch.
|
|
|
(5)Turn the ignition switch to the "LOCK" (OFF) position.
|
|
|
Q.
Is the check result normal?
|
|
|
Go to Step 13.
|
|
|
|
|
|
Go to Step 12.
|
|
|
|
|
|
STEP 12. Connector check: D-215 engine-ECU connector.
|
|
|
Q.
Is the check result normal?
|
|
|
Install the driver’s air bag module [Refer to GROUP 52B - Driver’s, Front Passenger’s Air Bag Module(s) and Clock Spring .] Then go to Step 19.
|
|
|
|
|
|
Repair or replace the damaged connector, and install the driver’s air bag module [Refer to GROUP 52B - Driver’s, Front Passenger’s Air Bag Module(s) and Clock Spring .] Then go to Step 21
.
|
|
|
|
|
|
STEP 13. Connectors check: D-215 engine-ECU connector, D-229 intermediate connector, D-301 cruise control switch connector, D-302 and D-305 clock spring connectors.
|
|
|
Q.
Is the check result normal?
|
|
|
Go to Step 14.
|
|
|
|
|
|
Repair or replace the damaged connector, and install the driver’s air bag module [Refer to GROUP 52B - Driver’s, Front Passenger’s Air Bag Module(s) and Clock Spring .] Then go to Step 21
.
|
|
|
|
|
|
STEP 14. Check the harness wire between engine-ECU connector D-215 terminal No.154 and cruise control switch connector D-301 terminal No.3.
|
|
|
Q.
Is the check result normal?
|
|
|
Go to Step 15.
|
|
|
|
|
|
Repair or replace the damaged harness wire, and install the driver’s air bag module [Refer to GROUP 52B - Driver’s, Front Passenger’s Air Bag Module(s) and Clock Spring .] Then go to Step 21
.
|
|
|
|
|
|
STEP 15. Check the clock spring.
|
|
|
Refer to GROUP 52B - Driver’s, Front Passenger’s Air Bag Module(s) and Clock Spring Inspection .
|
|
|
Q.
Is the check result normal?
|
|
|
Go to Step 16.
|
|
|
|
|
|
Replace the clock spring and install the driver’s air bag module [Refer to GROUP 52B - Driver’s, Front Passenger’s Air Bag Module(s) and Clock Spring .] Then go to Step 21.
|
|
|
|
|
|
STEP 16. Check the data list.
|
|
|
Using M.U.T.-III, check the data list (Refer to - data list reference table.)
|
|
|
- Item 136: "ON/OFF" switch.
- Item 137: "CANCEL" switch.
- Item 138: "COAST/SET" switch.
- Item 139: "ACC/RES" switch.
|
|
|
Q.
Is the check result normal?
|
|
|
It can be assumed that this malfunction is intermittent (Refer to GROUP 00 - How to Use Troubleshooting/Inspection Service Points, How to Cope with Intermittent Malfunctions .) Install the driver’s air bag module [Refer to GROUP 52B - Driver’s, Front Passenger’s Air Bag Module(s) and Clock Spring .]
|
|
|
|
|
|
Return to Step 2.
|
|
|
|
|
|
STEP 17. Connector check: D-301 cruise control switch connector.
|
|
|
Q.
Is the check result normal?
|
|
|
Go to Step 18.
|
|
|
|
|
|
Repair or replace the damaged connector, and install the driver’s air bag module [Refer to GROUP 52B - Driver’s, Front Passenger’s Air Bag Module(s) and Clock Spring .] Then go to Step 21
.
|
|
|
|
|
|
STEP 18. Check the cruise control switch.
|
|
|
Refer to .
|
|
|
Q.
Is the check result normal?
|
|
|
Install the driver’s air bag module [Refer to GROUP 52B - Driver’s, Front Passenger’s Air Bag Module(s) and Clock Spring .] Then go to Step 19.
|
|
|
|
|
|
Replace the cruise control switch (Refer to .) Install the driver’s air bag module [Refer to GROUP 52B - Driver’s, Front Passenger’s Air Bag Module(s) and Clock Spring .] Then go to Step 21.
|
|
|
|
|
|
STEP 19. Check the data list.
|
|
|
Using M.U.T.-III, check the data list (Refer to - data list reference table.)
|
|
|
- Item 136: "ON/OFF" switch.
- Item 137: "CANCEL" switch.
- Item 138: "COAST/SET" switch.
- Item 139: "ACC/RES" switch.
|
|
|
Q.
Is the check result normal?
|
|
|
Go to Step 20.
|
|
|
|
|
|
Replace the engine-ECU (Refer to GROUP 13B - Engine-ECU .) Then go to Step 21.
|
|
|
|
|
|
STEP 20. Read the diagnosis code.
|
|
|
(1)Disconnect the negative battery terminal, and erase the diagnosis code of the cruise control system.
|
|
|
(2)Connect the negative battery terminal.
|
|
|
(3)Turn the ignition switch to the "ON" position, and press the "ON/OFF" switch to turn the cruise control system to ON (turn ON the cruise control indicator lamp.)
|
|
|
(4)After turning the cruise control system to ON, when 2 minutes or more has elapsed without operating the cruise control switches, read the diagnosis code of the cruise control system (Refer to .)
|
|
|
Q.
Is diagnosis code No. P1564 set?
|
|
|
Replace the engine-ECU (Refer to GROUP 13B - Engine-ECU .) Then go to Step 21.
|
|
|
|
|
|
It can be assumed that this malfunction is intermittent (Refer to GROUP 00 - How to Use Troubleshooting/Inspection Service Points, How to Cope with Intermittent Malfunction .)
|
|
|
|
|
|
STEP 21. Check the data list.
|
|
|
Using M.U.T.-III, check the data list (Refer to - data list reference table.)
|
|
|
- Item 136: "ON/OFF" switch.
- Item 137: "CANCEL" switch.
- Item 138: "COAST/SET" switch.
- Item 139: "ACC/RES" switch.
|
|
|
Q.
Is the check result normal?
|
|
|
Go to Step 22.
|
|
|
|
|
|
Return to Step 2.
|
|
|
|
|
|
STEP 22. Read the diagnosis code.
|
|
|
(1)Disconnect the negative battery terminal, and erase the diagnosis code of the cruise control system.
|
|
|
(2)Connect the negative battery terminal.
|
|
|
(3)Turn the ignition switch to the "ON" position, and press the "ON/OFF" switch to turn the cruise control system to ON (turn ON the cruise control indicator lamp.)
|
|
|
(4)After turning the cruise control system to ON, when 2 minutes or more has elapsed without operating the cruise control switches, read the diagnosis code of the cruise control system (Refer to .)
|
|
|
Q.
Is diagnosis code No. P1564 set?
|
|
|
Return to Step 1.
|
|
|
|
|
|
The procedure is complete.
|
|
|
|
