REMOVAL AND INSTALLATION

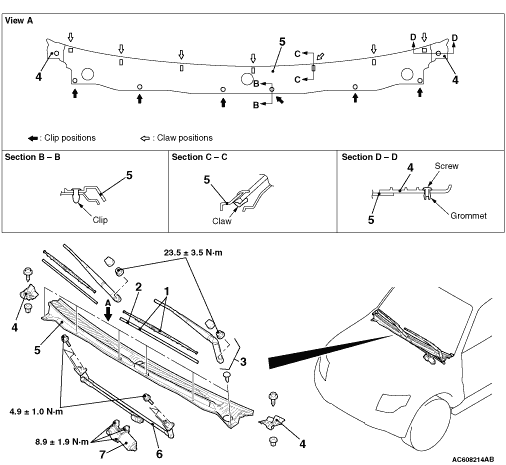

			Wiper blade removal steps
		1.	Wiper blade assembly
	>>A<<	2.	Wiper blade
			Windshield wiper motor and link assembly removal steps
	>>B<<	3.	Wiper arm and blade assembly
		4.	Front deck side garnish
		5.	Front deck garnish
		6.	Windshield wiper link assembly
		·	Windshield wiper motor connector connection
<<A>>		7.	Windshield wiper motor

note

For removal and installation of the wiper and washer switch, refer to GROUP 54A, Column switch

REMOVAL SERVICE POINT

<<A>> WINDSHIELD WIPER MOTOR ASSEMBLY REMOVAL

1.Remove the windshield wiper motor assembly mounting bolts.

caution

The automatic stop angle is determined at the time that the clamp arm and the windshield wiper motor assembly are installed together, and so they should not be disassembled unless required. Make markings on the vehicle body before removing the windshield wiper motor assembly.

2.Use a flat-tipped screwdriver to separate the clamp arm of the windshield wiper motor assembly and the link assembly, and then remove the windshield wiper motor assembly.

INSTALLATION SERVICE POINTS

>>A<< WIPER BLADE INSTALLATION

caution

Use a curved backing like that shown for the backing of a wiper blade to ensure sustained wiper wiping performance.

>>B<< WIPER ARM AND BLADE ASSEMBLY INSTALLATION

Install the wiper arm and blade assembly at the specified positions.
Standard value
A (Driver’s side): 25 ± 5 mm
B (Passenger’s side): 30 ± 5 mm
