REMOVAL AND INSTALLATION


warning
  • Before removal of the air bag module, refer to GROUP 52B, Service Precautions () and Driver’s and Passenger’s (Front) Air Bag Module(s) and Clock Spring ().
  • When removing and installing the steering wheel, do not let it bump against the air bag module.
  • After the installation, perform a calibration for the ASTC-ECU to learn the steering wheel sensor neutral point. (Refer to GROUP 35C, On-vehicle Service - Steering Wheel Sensor Calibration .)

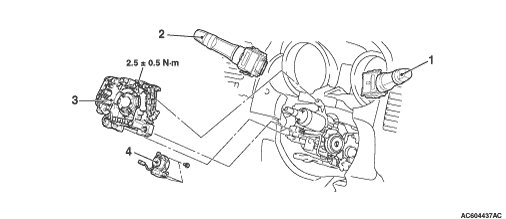

Removal Steps


·
 Steering column cover (Refer to GROUP 52A - Instrument Panel Assembly ).


1.
 Wiper/washer switch


2.
 Lighting switch


·
 Steering wheel assembly (Refer to GROUP 52B - Driver’s and Passenger’s (Front) Air Bag Module(s) and Clock Spring ).


·
 Clock spring (Refer to GROUP 52B - Driver’s and Passenger’s (Front) Air Bag Module(s) and Clock Spring ).


3.
 Column switch body


4.
 Steering wheel sensor (Refer to GROUP 35C - Steering wheel sensor ).
