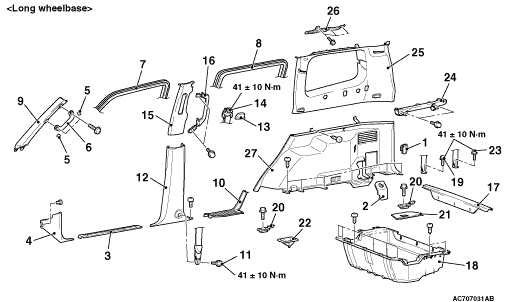

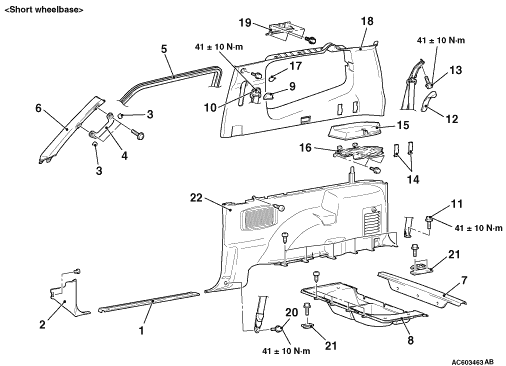

Removal steps
|
|
|
1.
|
Front scuff plate
|
|
|
2.
|
Cowl side trim
|
|
|
3.
|
Front pillar grip cap
|
|
|
4.
|
Front pillar grip
|
|
|
5.
|
Front door opening trim
|
|
|
6.
|
Front pillar trim
|
|
|
7.
|
Back door scuff plate
|
|
|
·
|
Tether anchor (Refer to  )
|
|
|
8.
|
Luggage floor box
|
|
|
9.
|
Sash guide cover
|
|
|
10.
|
Front seat belt connection
|
|
|
11.
|
Rear seat belt connection
|
|
|
12.
|
Sash guide cover
|
|
|
13.
|
Rear seat belt connection
|
|
|
14.
|
Side rear shelf trim cap
|
|
|
15.
|
Side rear shelf trim
|
|
|
16.
|
Side rear shelf trim reinforcement
|
|
|
·
|
Back door opening weatherstrip (Refer to GROUP 42 - Back door assembly)
|
|
|
17.
|
Cap
|
|
|
18.
|
Upper quarter trim
|
|
|
·
|
Headlining (Refer to )
|
|
|
19.
|
Upper quarter trim bracket
|
|
|
20.
|
Front seat belt connection
|
|
|
21.
|
Luggage hook
|
|
|
·
|
Second seat assembly (Refer to )
|
|
|
22.
|
Lower quarter trim
|
