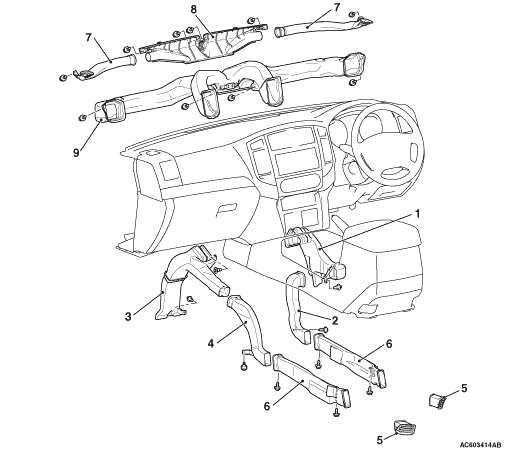

Foot duct removal steps
|
|
|
·
|
Instrument panel under cover assembly (Refer to GROUP 52A, Instrument
panel  ).
|
|
|
1.
|
Foot duct C
|
|
|
·
|
Instrument panel under cover assembly (Refer to GROUP 52A, Instrument
panel ).
|
|
|
2.
|
Foot duct D
|
|
|
3.
|
Foot duct A
|
|
|
4.
|
Foot duct B
|
|
|
|
Rear heater duct removal steps
|
|
|
·
|
Instrument panel under cover assembly (Refer to GROUP 52A, Instrument
panel ).
|
|
|
5.
|
Foot grille
|
|
|
·
|
Front floor console (Refer to GROUP 52A, Floor console ).
|
|
|
6.
|
Rear heater duct
|
|
|
|
Side defroster duct, defroster nozzle and ventilation air distribution
duct removal steps
|
|
|
·
|
Instrument panel under cover assembly (Refer to GROUP 52A, Instrument
panel ).
|
|
|
7.
|
Side defroster duct
|
|
|
8.
|
Defroster nozzle
|
|
|
9.
|
Distribution duct
|
