REMOVAL AND INSTALLATION <6G7>


Pre-removal Operation
  • Engine Room Under Cover (Front) Removal (Refer to GROUP 51 - Under Cover ).
  • Radiator Shroud Cover (Lower) Removal (Refer to GROUP 14 - Radiator ).

 Post-installation Operation
  • Engine Oil Refilling and Level Check (Refer to ).
  • Radiator Shroud Cover (Lower) Installation (Refer to GROUP 14 - Radiator ).
  • Engine Room Under Cover (Front) Installation (Refer to GROUP 51 - Under Cover ).

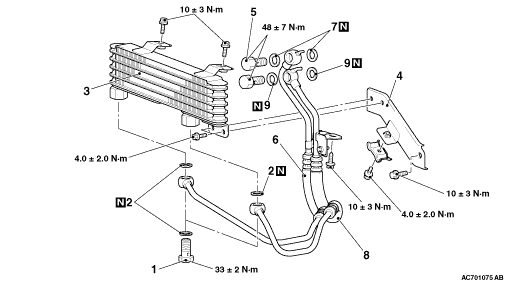

Removal steps


1.
 Eye bolts


2.
 Gaskets


3.
 Engine oil cooler assembly

>>A<<
 4.
 Bracket


5.
 Eye bolts


6.
 Oil cooler return hose


7.
 Gaskets


8.
 Oil cooler feed hose


9.
 Gaskets

INSTALLATION SERVICE POINT

>>A<< BRACKET INSTALLATION

Set it to the position in which marks of oil cooler feed hose and oil cooler return hose are shown in the illustration of clamp.
