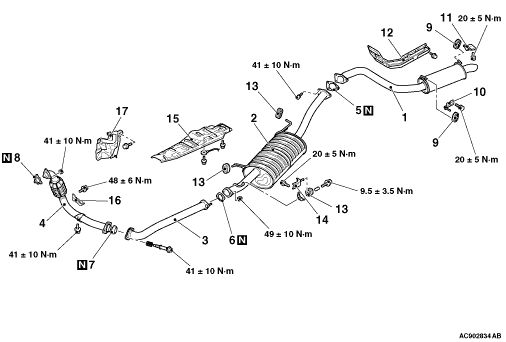

Exhaust main muffler and rear floor heat protector removal steps
|
|
|
1.
|
Exhaust main muffler
|
|
|
5.
|
Exhaust pipe gasket
|
|
|
9.
|
Exhaust muffler hanger
|
|
|
10.
|
Hanger bracket
|
|
|
11.
|
Hanger bracket
|
|
|
12.
|
Rear floor heat protector
|
|
|
|
Centre exhaust pipe removal steps
|
|
|
2.
|
Centre exhaust pipe
|
|
|
5.
|
Exhaust pipe gasket
|
|
|
6.
|
Exhaust pipe gasket
|
|
|
13.
|
Exhaust muffler hanger
|
|
|
14.
|
Hanger bracket
|
|
|
|
Front exhaust pipe and front floor heat protector removal steps
|
|
|
3.
|
Front exhaust pipe
|
|
|
6.
|
Exhaust pipe gasket
|
|
|
7.
|
Seal ring
|
|
|
15.
|
Front floor heat protector
|
|
|
|
Front catalytic converter and dash panel heat protector removal steps
|
|
|
·
|
Under skid plate and engine room under cover (front) (Refer to GROUP
51 - Under Cover  )
|
|
|
·
|
Air cleaner assembly (Refer to )
|
|
|
4.
|
Front catalytic converter
|
|
|
7.
|
Seal ring
|
|
|
8.
|
Exhaust pipe gasket
|
|
|
16.
|
Exhaust support bracket
|
|
|
17.
|
Dash panel heat protector
|
