REMOVAL AND INSTALLATION

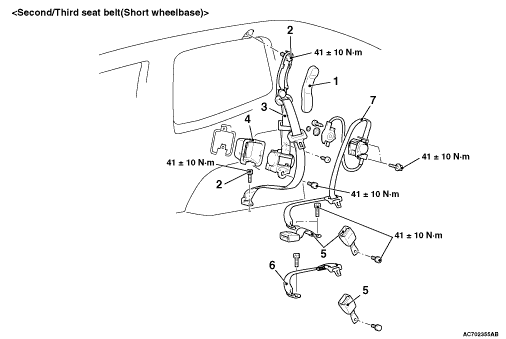

Second seat belt removal steps


·
 Rear seat assembly (Refer to ).


·
 Upper quarter trim (Refer to ).


1.
 Sash guide cover


2.
 Outer seat belt connection


3.
 Outer seat belt


4.
 Second seat belt ELR cover

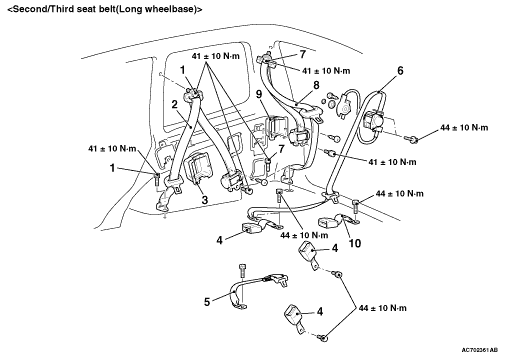

Third seat belt removal steps


·
 Rear seat assembly (Refer to ).


5.
 Inner seat belt (Refer to ).


6.
 2-point outer seat belt


7.
 3-point outer seat belt (Refer to ).




Second seat belt removal steps


·
 Lower quarter trim (Refer to ).


1.
 Outer seat belt connection


2.
 Outer seat belt


3.
 Second seat belt ELR cover


4.
 Inner seat belt (Refer to ).


5.
 2-point centre seat belt


6.
 3-point centre seat belt (Refer to ).



Third seat belt removal steps


·
 Lower quarter trim (Refer to ).


·
 Pillar duct (R.H.side) (Refer to GROUP 55, Ducts ).


·
 Rear blower unit (Refer to GROUP 55, Rear Heater Unit And Rear Blower Assembly ).


7.
 Outer seat belt connection


8.
 Outer seat belt


9.
 Third seat belt ELR cover


10.
 Inner seat belt
