REMOVAL AND INSTALLATION <4N1>

caution

Degrease the air hose and air pipe by isopropyl alcohol, parts cleaner (MZ100387) or equivalent.
As for the parts cleaner, use the petroleum cleaner whose major component is aliphatic hydrocarbon.
Working area should be airy and kept from flame.

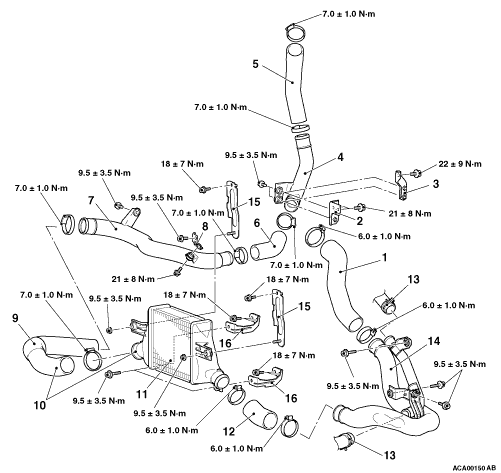

			Intercooler air hose and pipe removal steps
<<A>>	>>A<<	1.	Intercooler outlet air hose D
		·	Engine room under cover front B (Refer to GROUP 51 - Under Cover )
		2.	Intercooler pipe bracket A <2WD>
		3.	Intercooler pipe bracket A <4WD>
<<A>>	>>A<<	4.	Intercooler inlet air pipe A
<<A>>	>>A<<	5.	Intercooler intake air hose E
<<A>>	>>A<<	6.	Intercooler intake air hose A
		·	Engine room side cover (RH) (Refer to GROUP 51 - Under Cover )
<<A>>	>>A<<	7.	Intercooler inlet air pipe B
		8.	Intercooler pipe bracket B
<<A>>	>>A<<	9.	Intercooler inlet air hose B
		·	Front bumper assembly (Refer to GROUP 51 - Front Bumper Assembly )
		11.	Intercooler assembly
<<A>>	>>A<<	12.	Intercooler outlet air hose C
		·	Engine coolant (Refer to GROUP 14 - On-vehicle Service, Engine Coolant Replacement )
		13.	Radiator lower hose connection (Refer to GROUP 14 - Radiator )
<<A>>	>>A<<	14.	Intercooler outlet air pipe C
			Intercooler assembly removal steps
		·	Front bumper assembly (Refer to GROUP 51 - Front Bumper Assembly )
<<A>>	>>A<<	10.	Intercooler inlet air hose B and intercooler assembly connection
		11.	Intercooler assembly
		15.	Intercooler bracket
		16.	Intercooler bracket

REMOVAL SERVICE POINT

For removal service points, follow the same service procedures as 10 MY OUTLANDER with BSY engine.

For installation service points, follow the same service procedures as 10 MY OUTLANDER with BSY engine.
