REMOVAL AND INSTALLATION <4A9>


Pre-removal Operation
  • Engine Cover Removal (Refer to GROUP 11E- Camshaft ).
  • Drive Belt Removal (Refer to GROUP 11E - Crankshaft Pulley ).

 Post-installation Operation
  • Drive Belt Installation (Refer to GROUP 11E - Crankshaft Pulley ).
  • Drive Belt Tension Check and Adjustment (Refer to GROUP 11E - On-Vehicle Service, Drive Belt Tension Check and Adjustment ).
  • Engine Cover Installation (Refer to GROUP 11E - Camshaft ).

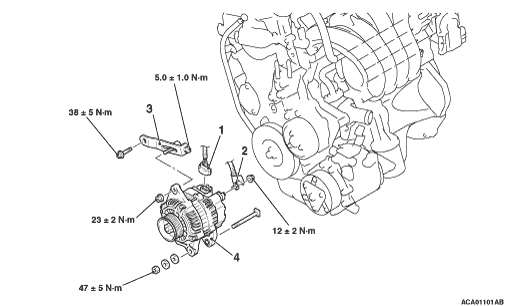

Removal steps


1.
 Alternator connector connection


2.
 Alternator terminal connection


3.
 Alternator brace
<<A>>
4.
 Alternator assembly

REMOVAL SERVICE POINT

<<A>> ALTERNATOR ASSEMBLY REMOVAL
1.Slide the clamp on the lower radiator hose, and then remove the alternator pivot bolt.
2.Remove the alternator assembly from above the vehicle.
