REMOVAL AND INSTALLATION


caution The parts indicated by the * are the bolts with friction coefficient stabilizer. In removal, ensure there is no damage, clean dust and soiling from bearing and thread surfaces, and tighten them to the specified torque.
Pre-removal and post-installation operation
  • Engine Room Under Cover Front B Removal and Installation (Refer to GROUP 51 - Under Cover ).

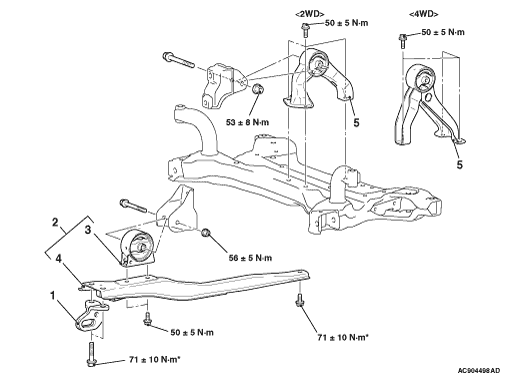

Front roll stopper and centremember removal steps


1.
 Centremember hook


2.
 Centremember assembly

>>A<<
 3.
 Front roll stopper



Rear roll stopper removal <2WD>


5.
 Rear roll stopper



Rear roll stopper removal steps <4WD-CVT>


1.
 Centremember hook


4.
 Centremember


5.
 Rear roll stopper



Rear roll stopper removal steps <4WD-M/T>


·
 Crossmember assembly (Refer to )

INSTALLATION SERVICE POINT

>>A<< FRONT ROLL STOPPER INSTALLATION

Install the front roll stopper so that the hole faces toward the vehicle front.
