REMOVAL AND INSTALLATION

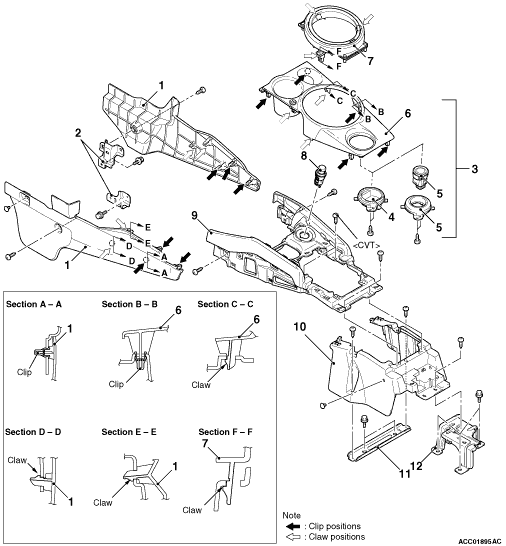

Removal steps


1.
 Floor console side cover


2.
 Floor console bracket front


3.
 Floor console panel assembly


4.
 Floor console plug <2WD>
<<A>>
·.
 Drive mode selector connection <4WD>


5.
 Drive mode selector <4WD>


6.
 Floor console panel


7.
 Gearshift lever cover assembly <M/T>


·.
 Rear floor console assembly (Refer to ).


·.
 Shift panel (Refer to GROUP 23A - Transmission control ).


8.
 Accessory socket assembly


9.
 Floor console front


·.
 Inside transmission antenna assembly (front) (Refer to GROUP 42B - Outside Transmission Antenna Assembly, Inside Transmission Antenna Assembly, Receiver Antenna Module ).


10.
 Floor console centre


11.
 Floor console trim plate bracket


12.
 Floor console bracket centre

REMOVAL SERVICE POINT

<<A>> WIRING HARNESS CONNECTOR DISCONNECTION

Disconnect the following wiring harness connectors:
Connector number
 Connector name
C-18 (5)
 Drive mode selector connector <4WD>
