- Damaged wiring harness or connector(s)
- Malfunction of the charging cable
- Malfunction of the combination meter
- Malfunction of the domestic power supply facility
|
|
|
Connect the charging cable and check if the charging lamp flashes when the electric motor
switch is set to "ON".
|
|
|
Q.
Is the check result normal?
|
|
|
Intermittent malfunction (Refer to GROUP 00 - How
to Use Troubleshooting/Inspection Service Points - How to Cope with Intermittent
Malfunction  .)
|
|
|
|
|
|
 Check the charging cable. (Refer to .) Then go
to Step 2.
|
|
|
|
|
|
Q.
Is the check result normal?
|
|
|
Correct the connector, or replace the charger cable (regular charging). (Refer
to .)
|
|
|
|
|
|
Check the signal lines for open circuit. Do not connect the charging cable.
|
|
|

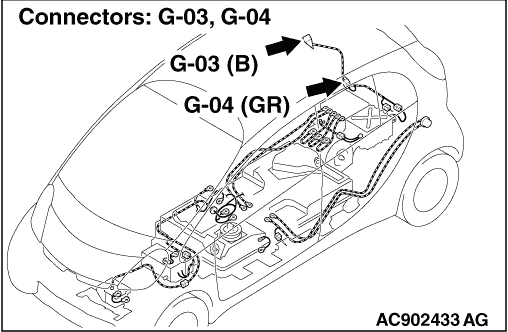

(1)Measure the resistance between the G-03 regular charging connection terminal No.
4 and G-04 earth connector terminal No. 3.
OK: 2,430 - 2,970Ω (at 20°C)
|
|
|
Q.
Is the check result normal?
|
|
|
Correct the wiring harness or replace the
EV charger cable (regular charging). (Refer to .)
|
|
|
|
|
|
Q.
Is the check result normal?
|
|
|
Intermittent malfunction (Refer to GROUP 00 - How to Use Troubleshooting/Inspection
Service Points - How to Cope with Intermittent Malfunction .)
|
|
|
|
|
|
Check the charging cable. (Refer to .)
|
|
|
|
