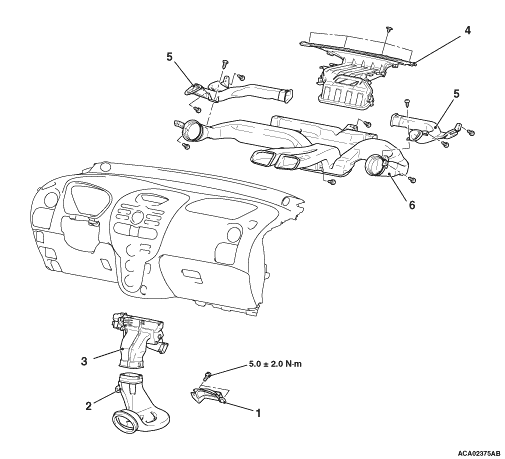

REMOVAL AND INSTALLATION



Removal steps


·
 Cowl side trim (Refer to GROUP 52A, Interior trim )


·
 Front console (Refer to GROUP 52A, Floor console assembly )


·
 Front seat assembly ( Refer to GROUP 52A, Front seat assembly )


1.
 Front floor console heater duct protector <Vehicles with quick charger>


2.
 Front floor console heater duct <Vehicles with quick charger>
<<A>>
3.
 Foot heater duct


·
 Instrument panel (Refer to GROUP 52A, Instrument panel assembly )


4.
 Defroster nozzle


5.
 Side defroster nozzle (LH)


6.
 Side defroster nozzle (RH)


7.
 Ventilator air distribution duct

REMOVAL SERVICE POINT

<<A>> FOOT HEATER DUCT REMOVAL

Remove the foot duct avoiding the claws according to the procedure shown in the figure at the left.
