Damper removal
|
|
|
1.
|
Damper
|
|
|
|

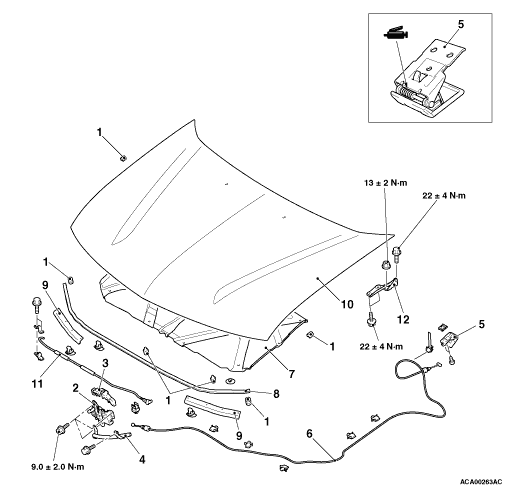

Hood latch and hood lock release cable removal steps
|
|
|
·
|
Radiator grille (Refer to GROUP 51, Radiator Grille  .)
|
|
|
2.
|
Hood latch
|
|
|
3.
|
Hood latch cover <Some models>
|
|
|
4.
|
Hood lock release cable protector
|
|
|
5.
|
Hood lock release handle
|
|
|
·
|
Front splash shield (Refer to .)
|
|
|
6.
|
Hood lock release cable
|
|
|
|
Hood removal steps
|
|
|
7.
|

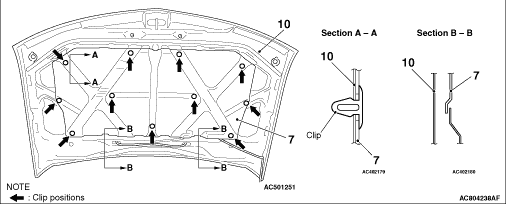

Hood insulator
|
|
|
8.
|
Hood weatherstrip
|
|
|
9.
|
Hood weatherstrip front
|
|
|
·
|
Windshield washer hose and windshield washer nozzle (Refer to GROUP
51, Windshield Washer .)
|
|
|
10.
|
Hood
|
|
|
11.
|
Hood support rod
|
|
|
·
|
Front deck garnish (Refer to GROUP 51, Windshield Wiper .)
|
|
|
12.
|
Hood hinge
|
