REMOVAL AND INSTALLATION


Pre-removal and Post-installation Operation
  • Front Splash Shield Removal and Installation (Refer to ).
  • Front Deck Garnish Removal and Installation (Refer to GROUP 51, Windshield Wiper ).
  • Headlamp Assembly Removal and Installation (Refer to GROUP 54A, Headlamp ).
  • Fender garnish Removal and Installation <Vehicles with fender garnish> (Refer to GROUP 51, Garnish ).
  • Front Overfender Removal and Installation <Vehicles with wide fender> (Refer to GROUP 51, Overfender .)
  • Front Bumper Support Bracket Removal and Installation (Refer to GROUP 51, Front Bumper Assembly ).




Removal steps
<<A>>
 >>A<<

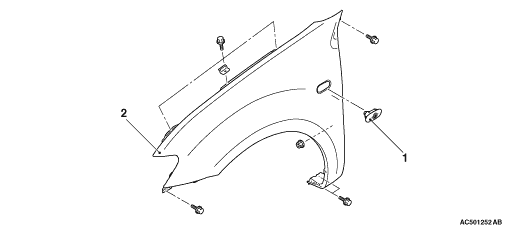

 1.
 Side turn-signal lamp <Vehicles without fender garnish>


2.
 Fender

REMOVAL SERVICE POINT

<<A>> SIDE TURN-SIGNAL LAMP REMOVAL

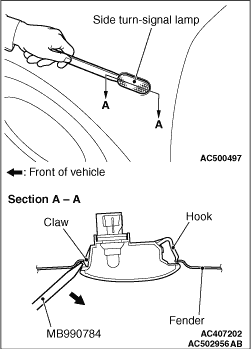

Insert the special tool ornament remover (MB990784) as shown to compress the hook and disengage the claw. Remove the side turn-signal lamp.

INSTALLATION SERVICE POINT

>>A<< SIDE TURN-SIGNAL LAMP INSTALLATION

Engage the claw and the hook onto the fender to install the side turn-signal lamp.
