HEADLAMP REMOVAL AND INSTALLATION

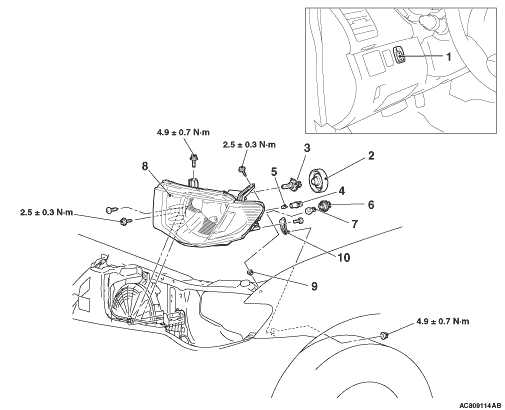

<SINGLE CAB AND VEHICLES FOR RUSSIA>


Post-installation operationCheck the beam direction of the headlamp (Refer to Headlamp Aiming ).




Headlamp levelling switch removal steps


·
 Lower panel assembly (Refer to GROUP 52A, Instrument Panel Assembly ).


1.
 Headlamp levelling switch



Headlamp removal steps


2.
 Headlamp bulb socket cover


3.
 Headlamp bulb


4.
 Position lamp bulb socket


5.
 Position lamp bulb


6.
 Front turn-signal lamp bulb socket


7.
 Front turn-signal lamp bulb



Headlamp body removal step


·
 Radiator grille (Refer to GROUP 51, Radiator grille .)


·
 Front splash shield (Front bumper side) (Refer to GROUP 42, Splash shield ).


8.
 Headlamp body


9.
 Grommet


10.
 Headlamp bracket

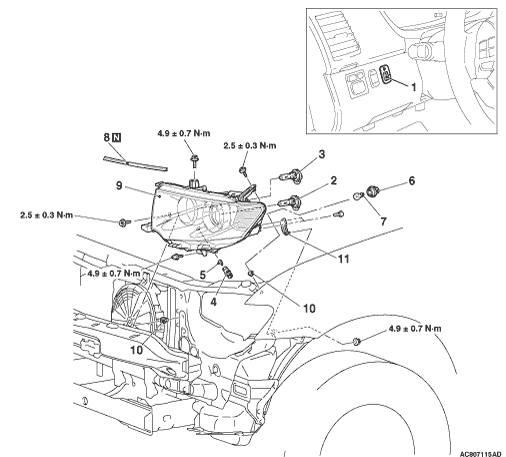

<VEHICLES FOR EUROPE (EXCEPT FOR SINGLE CAB)>


Post-installation operationCheck the beam direction of the headlamp (Refer to Headlamp Aiming ).




Headlamp levelling switch removal steps


·
 Lower panel assembly (Refer to GROUP 52A, Instrument Panel Assembly ).


1.
 Headlamp levelling switch



Headlamp removal steps


2.
 Headlamp bulb (low-beam)


3.
 Headlamp bulb (high-beam)


4.
 Position lamp bulb socket


5.
 Position lamp bulb


6.
 Front turn-signal lamp bulb socket


7.
 Front turn-signal lamp bulb


8.
 Headlamp seal



Headlamp body removal step


·
 Front bumper assembly (Refer to GROUP 51, Front bumper assembly ).


9.
 Headlamp body


10.
 Grommet


11.
 Headlamp bracket
