REMOVAL AND INSTALLATION


Post-installation Operation
  • Rear Panel Power Window Glass Adjustment (Refer to ).
  • Rear Panel Power Window Initial Set (Refer to ).

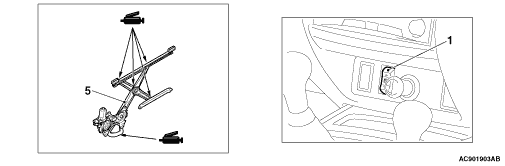

Rear panel power window switch removal


1.
 Rear panel power window switch (Refer to GROUP 52A, Centre lower panel assembly, Instrument Panel Assembly .)

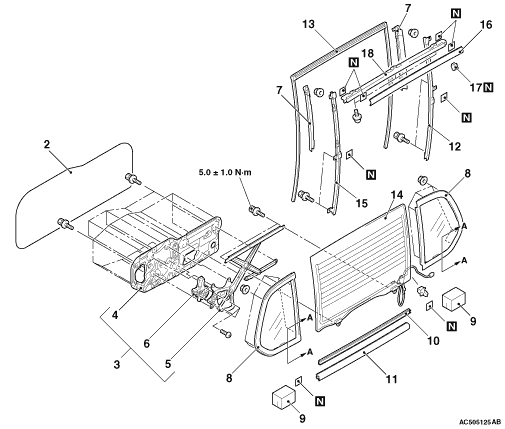

Rear panel power window regulator assembly removal steps


·
 Cab rear end lower trim (Refer to GROUP 52A, Interior Trim .)

>>B<<
 2.
 Waterproof film
<<A>>
3.
 Rear window panel assembly


4.
 Rear window panel


5.
 Rear panel power window regulator


6.
 Rear panel power window motor



Rear slide window glass and rear side window glass removal steps


·
 Headlining (Refer to GROUP 52A, Headlining .)


·
 Cab rear end lower trim (Refer to GROUP 52A, Interior Trim .)

>>B<<
 2.
 Waterproof film


7.
 Rear window side moulding


8.
 Rear side window glass assembly


9.
 Rear body cushion


10.
 Cab rear window weatherstrip


11.
 Rear window moulding lower


12.
 Rear slide window sash side (RH side)


13.
 Rear slide window glass runchannel


14.
 Rear slide window glass


15.
 Rear slide window sash side (LH side)


16.
 Rear slide window sash upper

>>A<<
 17.
 Clip


18.
 Rear window moulding upper
Post-installation Operation
  • Rear Panel Power Window Initial Set (Refer to ).

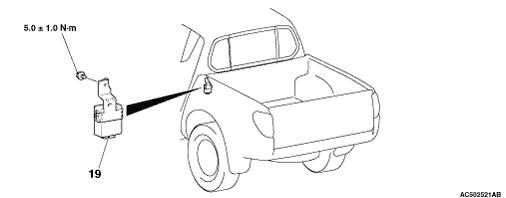

Rear panel power window-ECU removal steps


·
 Rear pillar trim (Refer to GROUP 52A, Interior Trim .)


19.
 Rear panel power window-ECU

REMOVAL SERVICE POINT

<<A>> REAR WINDOW PANEL ASSEMBLY REMOVAL
1.Activate the anti-trap function successively 3 times to deactivate the anti-trapping function.

2.Lower the rear slide window glass until the rear slide window glass mounting bolts are seen.
3.Remove the rear slide window glass mounting bolts.

4.
caution If tinting film is adhered to the rear slide window glass, attach the special tool, window glass holder (MB990480) to the outside of the glass to prevent the film from peeling off.
Lift the rear slide window glass, and attach the special tool, window glass holder (MB990480) to the glass as shown to prevent the glass from falling.
5.Remove the rear window panel assembly.

INSTALLATION SERVICE POINTS

>>A<< CLIP INSTALLATION
Since the clip is damaged when the rear slide window sash upper is removed, replace the clip (6137A009) and install it to the body.

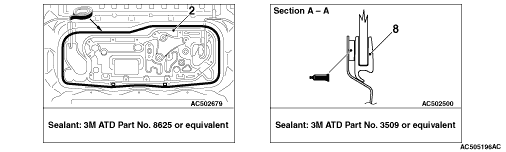

>>B<< WATERPROOF FILM INSTALLATION

caution When sticking the waterproof film, ensure that the sealant is applied under the inner panel water drain hole.
Apply the specified sealant to the waterproof film as shown and stick the film.
Specified sealant: 3M ATD Part No.8625 or equivalent
