REMOVAL AND INSTALLATION <BWC>


Pre-removal operation
  • Engine Coolant Draining (Refer to ).
  • Air Cleaner Assembly Removal (Refer to GROUP 15 - Air Cleaner ).

 Post-installation operation
  • Air Cleaner Assembly Installation (Refer to GROUP 15 - Air Cleaner ).
  • Engine Coolant Refilling and Check (Refer to ).

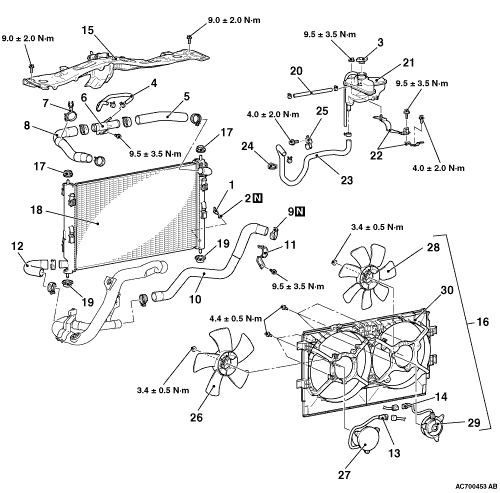

Radiator removal steps


·
 Engine room under cover front A and B (Refer to GROUP 51 - Under Cover )


1.
 Radiator drain plug


2.
 O-ring


3.
 Radiator condenser tank cap


4.
 Water bypass hose
<<A>>
 >>A<<
 5.
 Radiator upper hose


6.
 Upper pipe assembly


7.
 Clamp
<<A>>
 >>A<<
 8.
 Radiator upper hose
<<A>>
 >>A<<
 9.
 Hose clamp
<<A>>
 >>A<<
 10.
 Radiator lower hose


11.
 Radiator hose bracket
<<A>>
 >>A<<
 12.
 Radiator lower hose


13.
 Radiator fan motor connector connection


14.
 Condenser fan motor connector connection


·
 Headlamp support panel cover (Refer to GROUP 51 - Front Bumper Assembly and Radiator Grille )


·
 Hood lock release cable, hood latch (Refer to GROUP 42A - Hood )


·
 Front impact sensor (Refer to GROUP 52B - Front Impact Sensor )


15.
 Headlamp support panel upper
<<B>>
16.
 Fan, fan motor and fan shroud assembly


17.
 Support upper insulator


18.
 Radiator assembly


19.
 Support lower insulator


20.
 Water bypass hose


21.
 Radiator condenser tank


22.
 Radiator condenser tank bracket


23.
 Water bypass hose


24.
 Hose clip


25.
 Clamp



Fan shroud removal steps


4.
 Water bypass hose
<<A>>
 >>A<<
 5.
 Radiator upper hose


6.
 Upper pipe assembly


13.
 Radiator fan motor connector connection


14.
 Condenser fan motor connector connection


·
 Headlamp support panel cover (Refer to GROUP 51 - Front Bumper Assembly and Radiator Grille )


·
 Hood lock release cable, hood latch (Refer to GROUP 42A - Hood )


·
 Front impact sensor (Refer to GROUP 52B - Front Impact Sensor )


15.
 Headlamp support panel upper
<<B>>
16.
 Fan, fan motor and fan shroud assembly


26.
 Radiator fan


27.
 Radiator fan motor


28.
 Condenser fan


29.
 Condenser fan motor


30.
 Fan shroud

REMOVAL SERVICE POINTS

<<A>> RADIATOR UPPER HOSE/HOSE CLAMP/RADIATOR LOWER HOSE DISCONNECTION

1.Make mating marks on the radiator hose and the hose clamp.

2.Break off the tip of hose clip claw and spread out the hose clip.
note If there is a hose clip claw, the hose clip cannot spread to capacity because the claw contacts the hose clip.
3.Disconnect the radiator hose.

<<B>> FAN, FAN MOTOR AND FAN SHROUD ASSEMBLY REMOVAL

Remove the fan, fan motor and fan shroud assembly from the radiator assembly according to the procedure below.
1.Release the upper locks of the radiator assembly from the fan, fan motor, and fan shroud assembly.
2.Slightly raise the fan, fan motor, and fan shroud assembly.
3.Release the lower locks of the radiator assembly from the fan, fan motor, and fan shroud assembly, and then remove the fan, fan motor and fan shroud assembly.

INSTALLATION SERVICE POINT

>>A<< RADIATOR LOWER HOSE/HOSE CLAMP/RADIATOR UPPER HOSE INSTALLATION
1.
caution Never reuse the hose clip whose claw is broken off to prevent the rusting.
Insert a new hose clip into the radiator upper hose.

2.Insert radiator hose as far as the projection of the cooling water inlet hose fitting, cooling water outlet hose fitting or radiator.
3.Align the mating marks on the radiator hose and hose clamp, and then connect the radiator hose.
4.Remove the hose clip claw and shorten the hose clip, then install the radiator hose.
