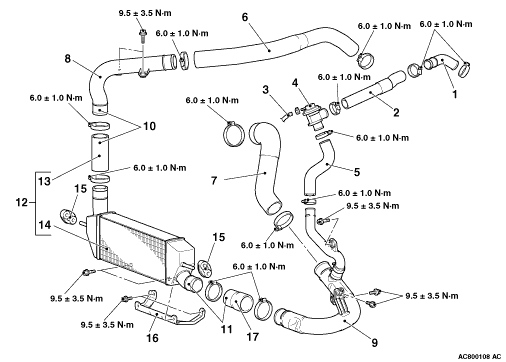

Intercooler air hose and pipe removal steps
|
|
|
1.
|
Intercooler outlet air pipe
|
|
|
2.
|
Intercooler outlet air hose
|
|
|
3.
|
Emission control equipment hose connection
|
|
|
4.
|
Air by-pass valve
|
|
|
5.
|
Intercooler outlet air hose
|
|
|
6.
|
Intercooler intake air hose A
|
|
|
·
|
Air cleaner intake duct (Refer to  ).
|
|
|
·
|
Battery and battery tray (Refer to GROUP 54A - Battery ).
|
|
|
7.
|
Intercooler outlet air hose E
|
|
|
·
|
Headlamp support panel cover (Refer to GROUP 42A - Loose
Panel )
|
|
|
8.
|
Intercooler inlet air pipe B
|
|
|
·
|
Front bumper and radiator grille assembly (Refer to GROUP 51 - Front
Bumper and Radiator Grille Assembly )
|
|
|
·
|
Transmission oil cooler duct (Refer to GROUP 22E - Oil Cooler )
|
|
|
9.
|
Intercooler outlet air pipe C
|
|
|
17.
|
Intercooler outlet air hose C
|
|
|
|
Intercooler assembly removal steps
|
|
|
·
|
Front bumper and radiator grille assembly (Refer to GROUP 51 - Front
Bumper and Radiator Grille Assembly )
|
|
|
10.
|
Intercooler intake air hose D and intercooler inlet air pipe B connection
|
|
|
11.
|
Intercooler outlet air hose C and intercooler connection
|
|
|
12.
|
Intercooler and intercooler intake air hose D assembly
|
|
|
13.
|
Intercooler intake air hose D
|
|
|
14.
|
Intercooler assembly
|
|
|
15.
|
Intercooler hanger
|
|
|
16.
|
Intercooler bracket
|
