REMOVAL AND INSTALLATION <4B10>


Pre-removal operation
  • Air Cleaner Intake Duct and Air Cleaner Intake Hose Removal (Refer to GROUP 15 - Air Cleaner ).
  • Battery and Battery Tray Removal (Refer to GROUP 54A - Battery ).
  • Engine Room Under Cover Front A, B Removal (Refer to GROUP 51- Under Cover ).

 Post-installation operation
  • Engine Room Under Cover Front A, B Installation (Refer to GROUP 51 - Under Cover ).
  • Battery and Battery Tray Installation (Refer to GROUP 54A - Battery ).
  • Air Cleaner Intake Duct and Air Cleaner Intake Hose Installation (Refer to GROUP 15 - Air Cleaner ).

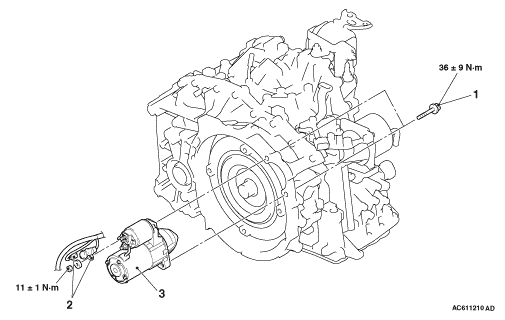

Removal steps


·
 Brake booster vacuum hose connection (Refer to GROUP 15 - Inlet Manifold )


·
 Emission vacuum hose connection (Refer to GROUP 15 - Inlet Manifold )


·
 Throttle body stay (Refer to GROUP 13B - Throttle Body Assembly )


1.
 Starter mounting bolt
<<A>>
2.
 Starter connector and terminal connection
<<A>>
3.
 Starter assembly

REMOVAL SERVICE POINT

<<A>> STARTER CONNECTOR AND TERMINAL/STARTER ASSEMBLY REMOVAL
1.Slide the starter, and remove the starter connector and terminal.
2.Remove the starter assembly from the lower front of the engine.
