REMOVAL AND INSTALLATION



Pre-removal operation
  • Floor console bracket (A) and floor console side cover removal (Refer to GROUP 52A, Floor console assembly .)
  • Instrument panel lower removal <Vehicles with instrument panel cover lower>(Refer to GROUP 52A, Instrument lower panel .)
  • Steering column lower cover removal (Refer to GROUP 37B, Steering shaft assembly .)
  • Foot duct (driver’s side) removal (Refer to GROUP 55A, Ducts .)

Post-installation operation
  • Foot duct (driver’s side) installation (Refer to GROUP 55A, Ducts .)
  • Steering column lower cover installation (Refer to GROUP 37B, steering shaft assembly .)
  • Instrument panel lower installation <Vehicles with instrument panel cover lower>(Refer to GROUP 52A, Instrument lower panel .)
  • Floor console bracket (A) and floor console side cover installation (Refer To GROUP 52A, Floor console assembly .)
  • Key interlock mechanism check (Refer to .)
  • Shift lock mechanism check (Refer to .)
  • Selector lever operation check (Refer to .)

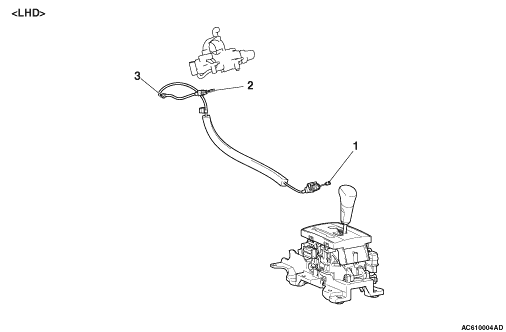

Removal steps

>>B<<
1.
Key interlock cable connection (selector lever side)
<<A>>
>>A<<
2.
Key interlock cable connection (steering side)


3.
Key interlock cable

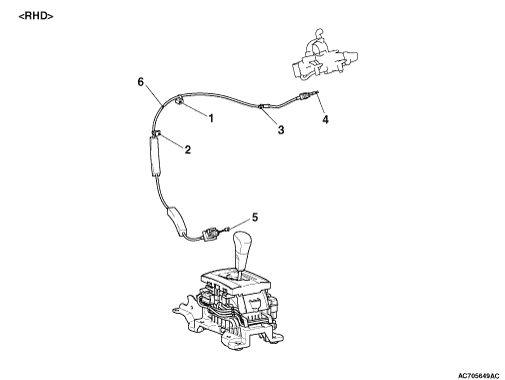

Removal steps


1.
Band clip A


2.
Band clip B


3.
Harness clip
<<A>>
>>A<<
4.
Key interlock cable connection (steering side)

>>B<<
5.
Key interlock cable connection (selector lever side)


6.
Key interlock cable

REMOVAL SERVICE POINT



<<A>> KEY INTERLOCK CABLE (STEERING SIDE) REMOVAL


Turn the ignition switch to the "ACC" position and then pull the key interlock cable out from the ignition key cylinder.

INSTALLATION SERVICE POINTS



>>A<< KEY INTERLOCK CABLE (STEERING SIDE) INSTALLATION


Turn the ignition switch to the "ACC" position and then install the key interlock cable to the ignition key cylinder.

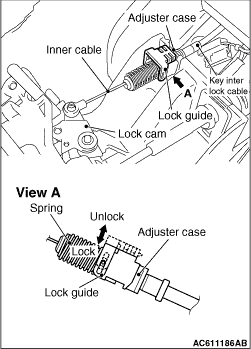

>>B<< KEY INTERLOCK CABLE (SELECTOR LEVER SIDE) INSTALLATION


caution Leave the ignition switch in the "LOCK" (OFF) position until the key interlock cable installation is completed.
1.Move the selector lever to the "P" position and turn the ignition switch to the "LOCK" (OFF) position.

2.Install the tip of the key interlock cable to the lock cam of the selector lever assembly, taking care not to twist the inner cable.
3.Install the adjuster case with its lock guide pulled up (unlocked).
4.Securely push down the lock guide to lock it.
note The lock position of the key interlock cable is automatically adjusted by a spring.
