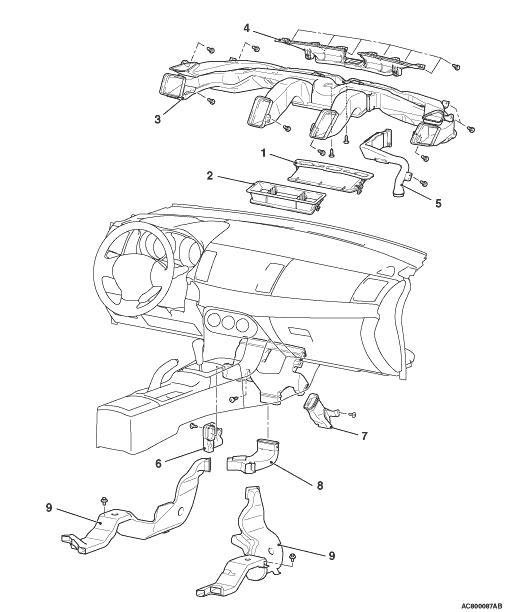

Removal steps for rear centre duct, front centre duct, side defroster
duct, defroster nozzle, ventilation air distribution duct
|
|
|
·
|
Instrument panel assembly (Refer to GROUP 52A - Instrumental
Panel  ).
|
|
|
1.
|
Front centre duct
|
|
|
2.
|
Rear centre duct
|
|
|
3.
|
Ventilation air distribution duct
|
|
|
4.
|
Defroster nozzle
|
|
|
|
Foot duct removal steps
|
|
|
·
|
Instrument panel lower (Refer to GROUP 52A - Instrument lower
panel ).
|
|
|
5.
|
Cooler duct
|
|
|
6.
|
Foot duct LH
|
|
|
·
|
Bottom cover (passenger side), Glove box (Refer to GROUP 52A - Glove
box ).
|
|
|
7.
|
Foot duct RH
|
|
|
|
Rear heater duct removal steps
|
|
|
·
|
Floor console assembly (Refer to GROUP 52A - Floor console ).
|
|
|
·
|
Instrument panel under cover (Refer to GROUP 52A - Instrument
Lower Panel ).
|
|
|
8.
|
Rear heater duct A
|
|
|
·
|
Front seat assembly (Refer to GROUP 52A - Front Seat ).
|
|
|
·
|
Front scuff plate, Cowl side trim (Refer to GROUP 52A - Trim ).
|
|
|
·
|
Turn up the floor carpet.
|
|
|
9.
|
Rear heater duct B
|
