REMOVAL AND INSTALLATION <4M4 (Emission regulation Euro 5b)>


Pre-removal Operation
  • Engine Cover Removal (Refer to GROUP 11C - Engine Assembly ).
  • Battery Removal (Refer to GROUP 54A - Battery ).
  • Throttle Body Assembly Removal (Refer to GROUP 13B - Throttle Body Assembly ).
  • EGR Valve and EGR Pipe B Removal (Refer to GROUP 17 - Emission Control, EGR Valve and EGR Cooler ).

 Post-installation Operation
  • EGR Valve and EGR Pipe B Installation (Refer to GROUP 17 - Emission Control, EGR Valve and EGR Cooler ).
  • Throttle Body Assembly Installation (Refer to GROUP 13B - Throttle Body Assembly ).
  • Battery Installation (Refer to GROUP 54A - Battery ).
  • Engine Cover Installation (Refer to GROUP 11C - Engine Assembly ).

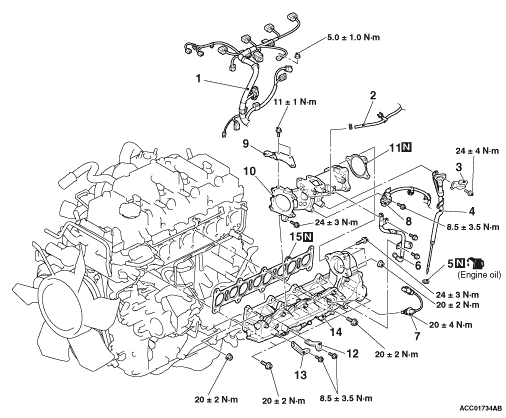

Removal steps


1.
 Control wiring harness connection


2.
 Vacuum hose connection


3.
 Connector bracket


4.
 Engine oil level gauge and guide assembly


5.
 O-ring


6.
 Fuel return B pipe assembly
<<A>>
7.
 EGR gas temperature sensor


8.
 Fuel pressure sensor wiring harness connector and harness bracket


9.
 Engine cover B bracket


10.
 Air inlet pipe


11.
 Gasket


12.
 Harness bracket


·
 Fuel supply pump pipe assembly, fuel injection pipe assembly, common rail assembly, fuel pipe bracket and fuel return A pipe assembly (Refer to GROUP 13B - Fuel Injector and Common Rail )


13.
 Harness bracket


14.
 Inlet manifold assembly


15.
 Inlet manifold gasket

REMOVAL SERVICE POINT

<<A>> EGR GAS TEMPERATURE SENSOR REMOVAL
caution Do not use the EGR gas temperature sensor which dropped.

note Use the recommended tool flare nut (14) socket (MB992692) to remove the EGR gas temperature sensor.
