REMOVAL AND INSTALLATION


Pre-removal and post-installation operation
  • Back door centre trim removal and installation (Refer to GROUP 52A - Back door trim .)
  • Back door garnish removal and installation (Refer to GROUP 51 - Garnishes .)
  • Back door licence plate carrier assembly removal and installation (Refer to .)
  • Spare tyre carrier removal and installation (Refer to GROUP 31 - Spare Tyre Carrier .)
  • High-mounted stop lamp assembly removal and installation (Refer to GROUP 54A, High-mounted stop lamp .)
  • Rear wiper motor assembly and Rear washer hose removal and installation (Refer to GROUP 51 - Rear Wiper and Washer .)
  • Back door speaker bracket removal and installation (Refer to GROUP 54A - Speaker .)
  • Back door handle, rock key cylinder and back door latch removal and installation (Refer to .)
  • Back door fit adjustment (Refer to .)
  • Back door handle play check (Refer to .)

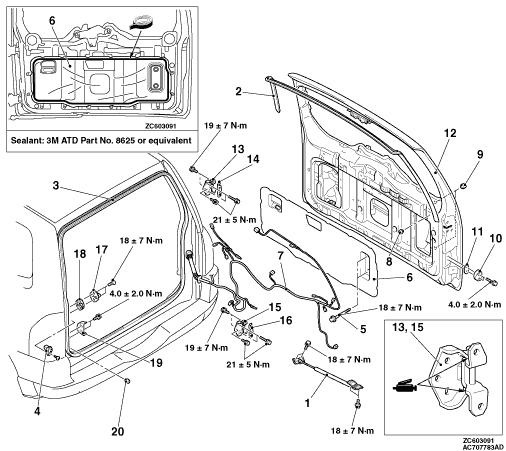

Back door safety stopper removal steps
<<A>>
1.
 Back door safety stopper



Back door opening upper weatherstrip and back door opening weatherstrip removal steps


2.
 Back door opening upper weatherstrip

>>B<<
 3.
 Back door opening weatherstrip



Back door switch removal steps


4.
 Back door switch



Back door waterproof film removal steps


5.
 Back door panel bolt


6.
 Back door waterproof film



Back door assembly removal steps


7.
 Harness connector


8.
 Damper A


9.
 Damper B


10.
 Damper rubber


11.
 Damper rubber shim


12.
 Back door assembly


13.
 Back door upper hinge


14.
 Back door hinge shim


15.
 Back door lower hinge


16.
 Back door hinge shim

>>A<<
 17.
 Back door striker


18.
 Back door striker shim


19.
 Damper rubber female


20.
 Damper C

REMOVAL SERVICE POINT

<<A>> BACK DOOR SAFETY STOPPER REMOVAL
caution
  • Do not disassemble or throw the tailgate gas spring into the fire.
  • Before disposal, make a hole to remove the gas.
  • Make sure that the piston rod should not collect any foreign particles.

INSTALLATION SERVICE POINTS

>>A<< STRIKER INSTALLATION

Install the striker so that the striker centre does not deviate more than 1.5 mm from the latch centre.

>>B<< BACK DOOR OPENING WEATHERSTRIP INSTALLATION

Align the marking section on the back door opening weatherstrip with the centre of the body.
