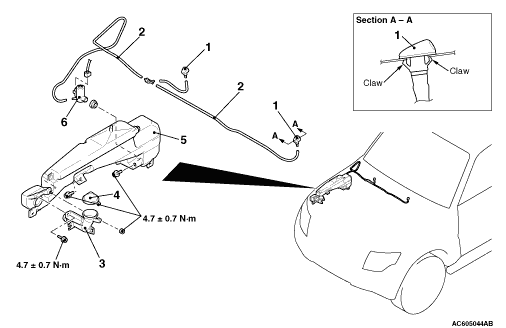

Windshield washer nozzle removal steps
|
|
|
·
|
Hood insulator (Refer to GROUP 42, Hood  )
|
|
|
1.
|
Windshield washer nozzle
|
|
|
Washer hose removal steps
|
|
|
·
|
Hood insulator (Refer to GROUP 42, Hood )
|
|
|
1.
|
Windshield washer nozzle
|
|
|
2.
|
Windshield washer hose
|
|
|
Washer tank removal steps
|
|
|
·
|
Front tyre (RH)
|
|
|
·
|
Front overfender front part (Refer to )
|
|
|
·
|
Splash shield (RH) (Refer to GROUP 42, Splash shield )
|
|
|
·
|
Front bumper assembly (Refer to )
|
|
|
·
|
Washer fluid draining
|
|
|
3.
|
Washer tank filler hose
|
|
|
4.
|
Cap
|
|
|
·
|
Windshield washer motor and headlamp washer motor connector connection
|
|
|
5.
|
Windshield washer tank
|
|
|
·
|
Headlamp washer motor (Refer to )
|
|
|
6.
|
Windshield washer motor
|
|
|
Washer motor removal steps
|
|
|
2.
|
Windshield washer hose
|
|
|
6.
|
Windshield washer motor
|
