REMOVAL AND INSTALLATION


Pre-removal Operation
  • Engine compartment under cover front B assembly removal (Refer to GROUP 51 - Under Cover .)
  • Transfer oil draining (Refer to .)

 Post-installation Operation
  • ACD bleeding (Refer to .)
  • Transfer oil filling (Refer to .)
  • Engine compartment under cover front B assembly installation (Refer to GROUP 51 - Under Cover .)

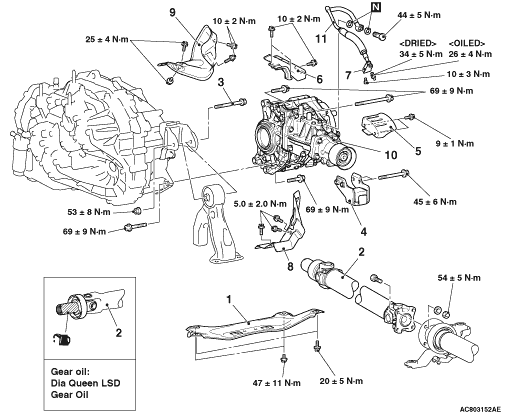

Removal steps (Cont.)


1.
 Front floor backbone brace
<<A>>
2.
 Front propeller shaft assembly


·
 Front driveshaft assembly, output shaft assembly (Refer to GROUP 26 - Driveshaft Assembly .)


·
 Centre member and front roll stopper assembly (Refer to GROUP 32 - Engine Roll Stopper and Centre Member .)


·
 Front exhaust pipe (Refer to GROUP 15 - Exhaust Pipe, Main Muffler and Catalytic Converter .)


3.
 Rear roll stopper centre bolt


4.
 Dynamic damper


5.
 Driveshaft heat protector


6.
 Transfer heat protector


7.
 Transfer pressure hose assembly connection


8.
 Steering gear and linkage heat protector


9.
 Turbocharger protector A
<<B>>
10.
 Transfer assembly

>>A<<
 11.
 Transfer pressure hose assembly

REMOVAL SERVICE POINTS

<<A>> FRONT PROPELLER SHAFT ASSEMBLY REMOVAL

Make mating marks on the front propeller shaft assembly and companion flange, then remove the connecting nut.

<<B>> TRANSFER ASSEMBLY REMOVAL
Move the engine and transmission assembly toward the front of the vehicle to create a gap between the engine/transmission assembly and the crossmember. Pull out the transfer assembly through this gap.

INSTALLATION SERVICE POINT

>>A<< TRANSFER PRESSURE HOSE ASSEMBLY INSTALLATION
caution When installing the transfer pressure hose assembly, use caution that the assembly does not interfere with surrounding components.
