REMOVAL AND INSTALLATION


warning
  • Before removing the front seat assembly, refer to GROUP 52B, Service Precautions and Knee air bag module .
  • Never attempt to disassemble or repair the PTC sensor. If faulty, replace it with new one(s).




Removal steps


·
 Floor console, Floor console side cover (Refer to GROUP 52A - Floor console assembly ).


·
 Bottom cover (passenger side), Glove box side panel, Glove box damper, Glove box, Glove box cover (Refer to GROUP 52A - Glove box ).


·
 Instrument panel air outlet garnish lower (RH), Instrument centre panel, Instrument panel console box, Instrument panel under cover (Refer to GROUP 52A - Instrument centre panel ).


·
 Instrument panel cover lower <Vehicle with Instrument panel cover lower>, Instrument panel lower (Refer to GROUP 52A - Instrument centre panel ).


·
 Foot duct LH, Foot duct RH (Refer to ).


·
 Knee air bag module (Refer to GROUP 52B - Knee air bag module ).


·
 Radio and CD player assembly (Refer to GROUP 54A - Radio and CD player ).
<<A>>
1.

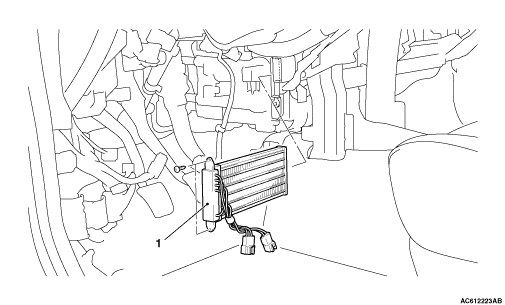

 PTC heater

REMOVAL SERVICE POINT

<<A>> PTC HEATER REMOVAL
Remove the PTC heater as described below.

1.Slide the foot duct centre so that a precision screwdriver can be inserted from the upper side of the PTC heater connector.

2.Insert a precision screwdriver from the upper side of the PTC heater connector, and disconnect the connector.
3.Remove the PTC heater screws.

4.Remove the harness clamp shown in the figure, and pull out the PTC heater.
