REMOVAL AND INSTALLATION


Pre-removal and Post-installation Operation
  • Refrigerant Draining and Refilling (Refer to ).
  • Battery, Battery tray (Refer to GROUP 54A, Battery ).
  • Radiator condenser tank (Refer to GROUP 14, Radiator ).
  • Fuel filter assembly <4M4> (Refer to GROUP 13C, Fuel filter ).
  • Engine cover.

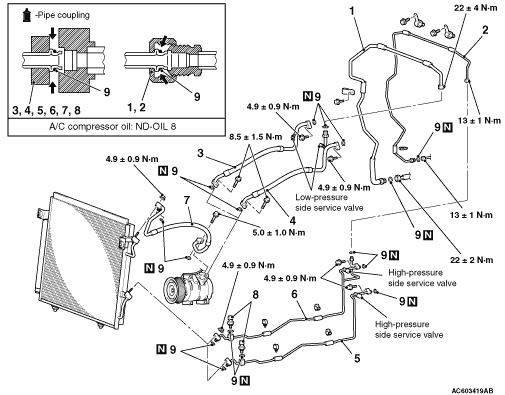

<From to 2010 year October>

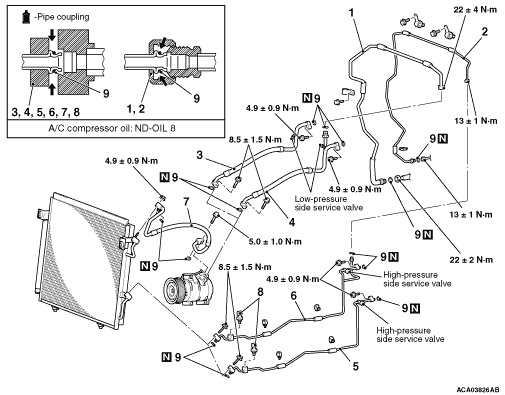

 <Up to 2010 year November>

Removal steps
<<A>>
1.
 Suction pipe A
<<A>>
2.
 Liquid pipe B <Dual A/C>
<<A>>
3.
 Flexible suction hose <Single A/C>
<<A>>
4.
 Flexible suction hose <Dual A/C>
<<A>>
5.
 Liquid pipe A <Single A/C>
<<A>>
6.
 Liquid pipe A <Dual A/C>
<<A>>
7.
 Flexible discharge hose
<<A>>
8.
 A/C pressure sensor


9.
 O-ring

REMOVAL SERVICE POINT

<<A>> HOSES AND PIPES REMOVAL
caution Use the plug which is not breathable because A/C compressor oil or receiver have high hygroscopicity.
Plug the nipple of condenser, compressor, and expansion valve to prevent the entry of dust and dirt.
