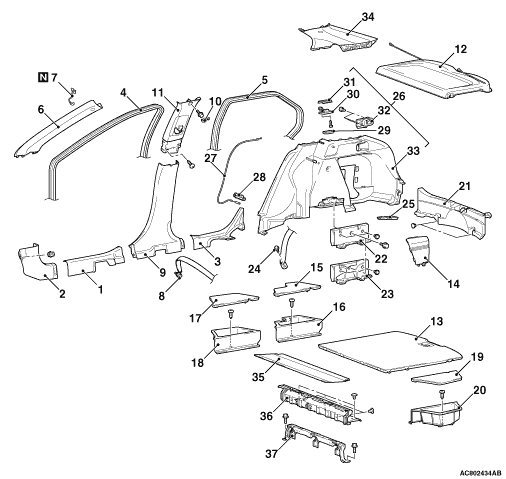

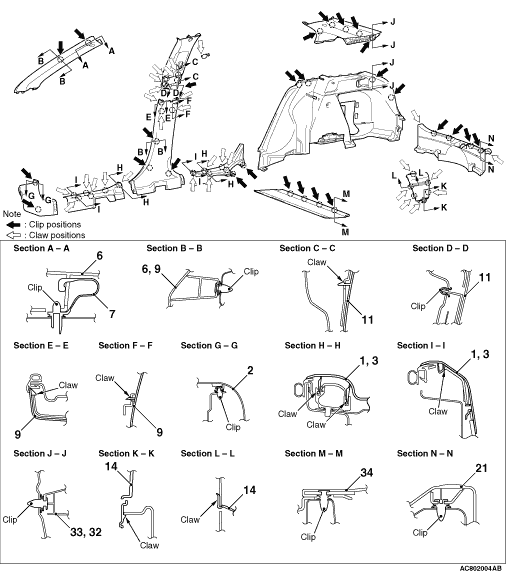

Cowl side trim removal steps
|
|
|
1.
|
Front scuff plate
|
|
|
2.
|
Cowl side trim
|
|
|
|
Rear scuff plate removal steps
|
|
|
·
|
Rear seat cushion (Refer to  ).
|
|
|
3.
|
Rear scuff plate
|
|
|
|
Front pillar trim removal steps
|
|
|
4.
|
Front door opening trim
|
<<A>>
|
|
6.
|
Front pillar trim
|
|
|
7.
|
Garnish clip
|
|
|
|
Upper centre pillar trim removal steps
|
|
|
·
|
Rear seat cushion (Refer to ).
|
|
|
3.
|
Rear scuff plate
|
|
|
4.
|
Front door opening trim
|
|
|
5.
|
Rear door opening trim
|
|
|
8.
|
Outer seatbelt lower anchor bolt
|
|
|
9.
|
Lower centre pillar trim
|
<<B>>
|
|
10.
|

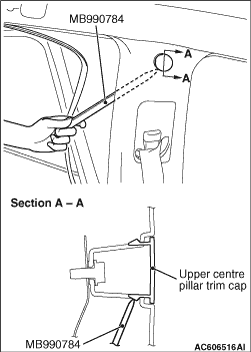

Upper centre pillar trim cap
|
|
|
11.
|
Upper centre pillar trim
|
|
|
|
Rear shelf trim removal steps
|
|
|
12.
|
Rear shelf trim
|
|
|
|
Cargo floor box (LH/RH) removal steps
|
|
|
13.
|
Cargo floor board (rear) <Except for RALLIART with spare wheel
(aluminium type)>
|
|
|
14.
|
Quarter trim plug <RALLIART>
|
|
|
15.
|
Cargo floor box lid (RH) <RALLIART>
|
|
|
16.
|
Cargo floor box (RH) <RALLIART>
|
|
|
17.
|
Cargo floor box lid (RH) <Except for RALLIART>
|
|
|
18.
|
Cargo floor box (RH) <Except for RALLIART>
|
|
|
19.
|
Cargo floor box lid (LH) <Vehicles without rear speaker
box assembly>
|
|
|
20.
|
Cargo floor box (RH) <Vehicles without rear speaker box assembly>
|
|
|
|
Quarter trim removal steps
|
|
|
·
|
Rear seat cushion (Refer to ).
|
|
|
3.
|
Rear scuff plate
|
|
|
5.
|
Rear door opening trim
|
|
|
12.
|
Rear shelf trim
|
|
|
13.
|
Cargo floor board (rear) <Except for RALLIART with spare wheel
(aluminium type)>
|
|
|
14.
|
Quarter trim plug <RALLIART>
|
|
|
15.
|
Cargo floor box lid (RH) <RALLIART>
|
|
|
16.
|
Cargo floor box (RH) <RALLIART>
|
|
|
17.
|
Cargo floor box lid (RH) <Except for RALLIART>
|
|
|
18.
|
Cargo floor box (RH) <Except for RALLIART>
|
|
|
19.
|
Cargo floor box lid (LH) <Vehicles without rear speaker
box assembly>
|
|
|
20.
|
Cargo floor box (RH) <Vehicles without rear speaker box assembly>
|
|
|
21.
|
Trunk room rear end trim
|
|
|
22.
|
Flexible floor plug
|
|
|
23.
|
Flexible floor guide
|
|
|
24.
|
Rear seatbelt outer lower anchor bolt (Refer to ).
|
|
|
25.
|
Rear combination lamp lid
|
|
|
26.
|
Quarter trim assembly
|
<<C>>
|
|
27.
|
Rear seat folding cable
|
|
|
28.
|
Rear seat folding knob guide
|
|
|
29.
|
Cargo room lamp lens
|
|
|
30.
|
Cargo room lamp
|
|
|
31.
|
Cargo room lamp bracket
|
|
|
32.
|
Rear seat folding knob
|
|
|
33.
|
Quarter trim
|
|
|
|
Rear pillar trim removal steps
|
|
|
·
|
Rear seat cushion (Refer to ).
|
|
|
3.
|
Rear scuff plate
|
|
|
5.
|
Rear door opening trim
|
|
|
12.
|
Rear shelf trim
|
|
|
13.
|
Cargo floor board (rear) <Except for RALLIART with spare wheel
(aluminium type)>
|
|
|
14.
|
Quarter trim plug <RALLIART>
|
|
|
15.
|
Cargo floor box lid (RH) <RALLIART>
|
|
|
16.
|
Cargo floor box (RH) <RALLIART>
|
|
|
17.
|
Cargo floor box lid (RH) <Except for RALLIART>
|
|
|
18.
|
Cargo floor box (RH) <Except for RALLIART>
|
|
|
19.
|
Cargo floor box lid (LH) <Vehicles without rear speaker
box assembly>
|
|
|
20.
|
Cargo floor box (LH) <Vehicles without rear speaker box assembly>
|
|
|
21.
|
Trunk room rear end trim
|
|
|
·
|
Tailgate opening weatherstrip (Refer to GROUP 42A - Tailgate ).
|
|
|
22.
|
Flexible floor plug
|
|
|
23.
|
Flexible floor guide
|
|
|
24.
|
Rear seatbelt outer lower anchor bolt (Refer to ).
|
|
|
26.
|
Quarter trim assembly
|
|
|
34.
|
Rear pillar trim
|
|
|
|
Floor carpet reinforcement rear removal steps
|
|
|
13.
|
Cargo floor board (rear) <Except for RALLIART with spare wheel
(aluminium type)>
|
|
|
35.
|
Cargo floor board (front)
|
|
|
·
|
Inside transmission antenna assembly (rear) (Refer to GROUP 42B - Outside
transmission antenna assembly, inside transmisson antenna assembly, receiver antenna module ).
|
|
|
36.
|
Rear partition board opening trim
|
|
|
37.
|
Floor carpet reinforcement rear
|
